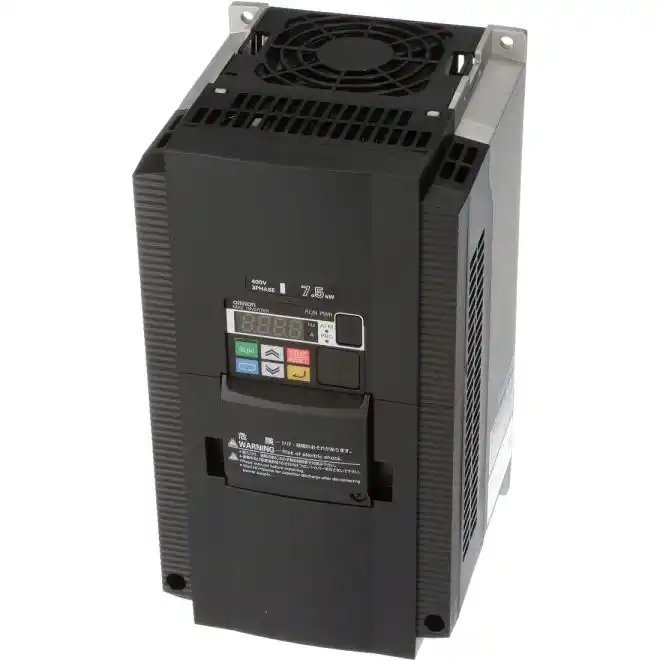

Omron 3G3MX2-A4075-V1 3-Phase 10HP 18A Drive
SKU#:
407789
Omron 3G3MX2-A4075-V1 inverter drive features state-of-the-art circuitry and components to provide high performance. The housing footprint is exceptionally small, given the size of the corresponding motor. The Omron MX2 product line includes more than a dozen inverter models to cover motor sizes from 1/8 horsepower to 20 horsepower, in either 240 VAC or 480 VAC power input versions. The MX2-V1 VFD delivers 200% starting torque near stand-still (0.5 Hz) and can operate in torque control in open loop mode. This allows the MX2-V1 to be used in applications where closed loop AC vector drives were previously used.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | 3G3MX2-A4075-V1 |
| Manufacturer Alternate Number | 3G3MX2A4075V1 |
| UPC | 4548583748514 |
| Communications | Modbus Built-in |
| Control Type | V/f & Sensorless Vector |
| Safety Functionality | CAT3, STO |
| Speed Range | 0.01Hz - 1000Hz |
| Starting Torque | 2HP |
| Supply Voltage Range | 480VAC |
| Power Phase | 3-Phase |
| IP Rating | IP20 |
| KW Rating | 11kW |
| Digital Operator | Included |
| Constant Torque-Horsepower | 10HP |
| Constant Torque-Current | 18.0A |
| Variable Torque-Horsepower | 15HP |
| Variable Torque-Current | 23.0A |
| Height (mm) | 260mm |
| Width (mm) | 140mm |
| Depth (Length) (mm) | 155mm |
| Weight (lbs) | 7.72 |
| UOM | ea |
