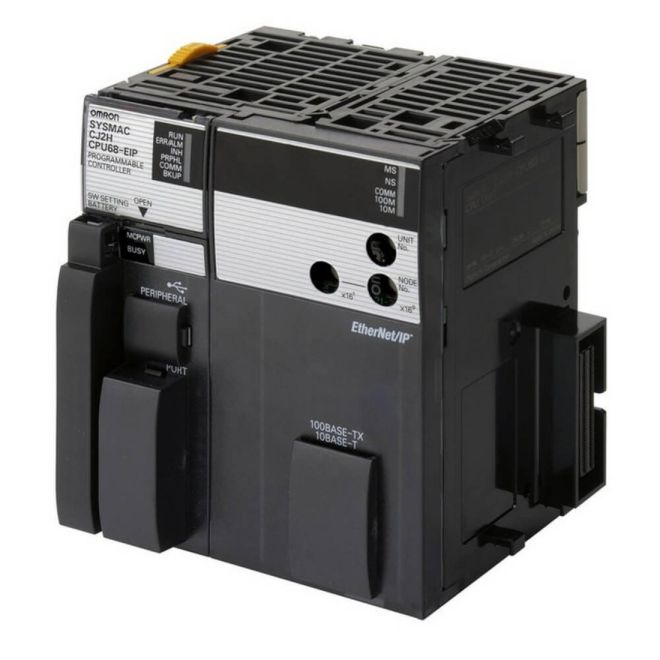

Omron CJ2H-CPU64-EIP EtherNet/IP RS-232C USB CPU
SKU#:
390841
Due to its high flexibility in configuration Omron CJ2 is the ideal solution to be used in a wide range of machines in various application ranges from Packaging, Food and commodities to Digital and Automotive. Connectivity with most of the industrial communication networks in the market is a key factor to use CJ2H-CPU64-EIP controller in all applications that need a data exchange between machines. Scalability between CJ2M and CJ2H CPU's enables an exact match between functions required and hardware to use to always provide a perfect ratio Price/Performance in each application. Robustness of the solution and proven quality complete the value of those products.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | CJ2H-CPU64-EIP |
| Manufacturer Alternate Number | CJ2HCPU64EIP |
| UPC | 4547648519113 |
| Total I/O Capacity | 2560 |
| Maximum Expansion | 40 |
| Additional Function Block Capacity | 20K Steps |
| Special Function | Ethernet/IP & Serial Port |
| Program Capacity | 50K Steps, 200K Bytes |
| DM Capacity | 160K |
| Basic Instruction Speed | 16ns |
| Height (mm) | 95.4mm |
| Width (mm) | 80mm |
| Depth (Length) (mm) | 74.5mm |
| Weight (lbs) | 0.62 |
| UOM | ea |
