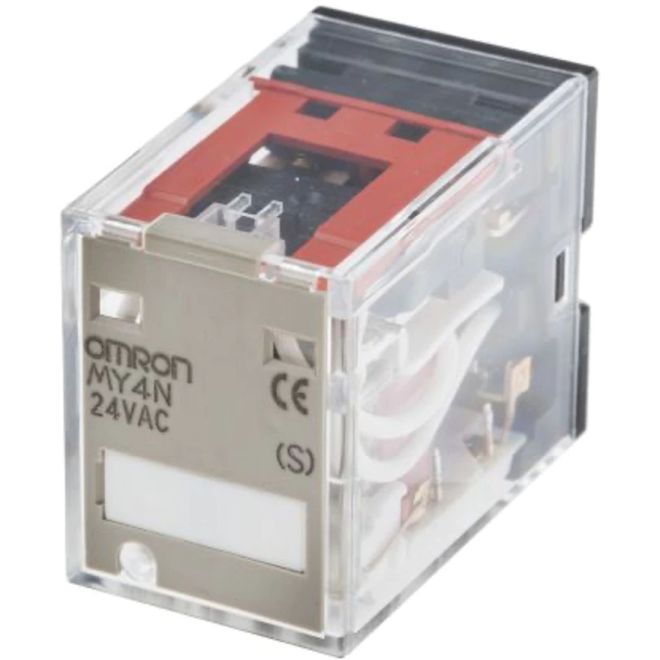

Omron MY4N AC24 (S) 4PDT Miniature Power Relay
SKU#:
2841
Omron's MY series relay has been the industry leader for over 15 years. Along with its world wide recognition, diverse contact configuration (DPDT 4PDT) and many different coil voltages (10 different AC and DC), MY4N AC24 (S) also includes standard options such as: push to test button, mechanical indicator, LED indicator and write-on nameplate.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | MY4N AC24 (S) |
| Manufacturer Alternate Number | MY4NAC24S |
| UPC | 4.54E+12 |
| Coil Voltage | 24VAC |
| Contact Arrangement | 4PDT (4 Form C) |
| Terminal Type | Plug-in |
| Mounting Type | Base/Socket |
| Indicator | LED |
| Max. Switching Voltage | 250 VAC, 125 VDC |
| Max. Switching Current | 5 A |
| Rated Current | 0.8 A at 250 VAC, 1.5 A at 30 VDC |
| Rated Load (Resistive) | 3 A at 250 VAC, 3 A at 30 VDC |
| Max. Switching Power(Resistive) | 660 VA, 72 W |
| Max. Switching Power (Inductive) | 176 VA, 36 W |
| Minimum Load | 1 mA at 1 VDC |
| Operating Temperature | -55°C - +70°C |
| Power Consumption | Approx. 0.9 VA to 1.3 VA (60 Hz) |
| RoHS Compliant | Yes |
| Duty Cycles | 200,000 |
| Height (mm) | 42.4mm |
| Width (mm) | 28mm |
| Depth (Length) (mm) | 21.5mm |
| Weight (lbs) | 0.08 |
| UOM | ea |
