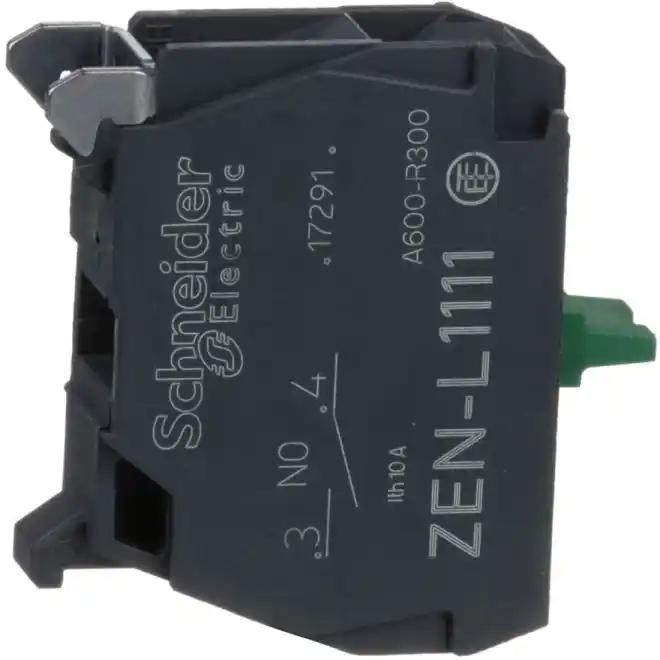

Square D ZENL1111 22mm Push Button Contact Blocks

SKU#:

156601

Schneider Electric ZEN-L1111 push button contact blocks are part of the switch that controls the flow of electricity through the switch. Count on reliable start up and shut down every time. Telemecanique contact blocks are used with push buttons to relay stop and start signals. Square D contact blocks control startup and shutdown for industrial equipment, like emergency stop buttons for car crushers or on-off switches for metal lathes. Schneider Electric ZEN L1111 is comparable to Telemecanique XEN-L1111.
Specifications
Brand Schneider Electric / Telemecanique / Square D
Manufacturer Part Number ZENL1111
Manufacturer Alternate Number ZEN-L1111
UPC 785901115076
Contact Arrangement 1 N/O
Rated Current 6A
Mounting Type Panel
Electrical Connection Screw Terminals
Operating Temperature -40°C - +70°C
Duty Cycles 1,000,000
IP Rating IP20
Type Contact Block
Height (mm) 10mm
Width (mm) 30mm
Depth (Length) (mm) 32mm
Weight (lbs) 0.03
UOM ea
