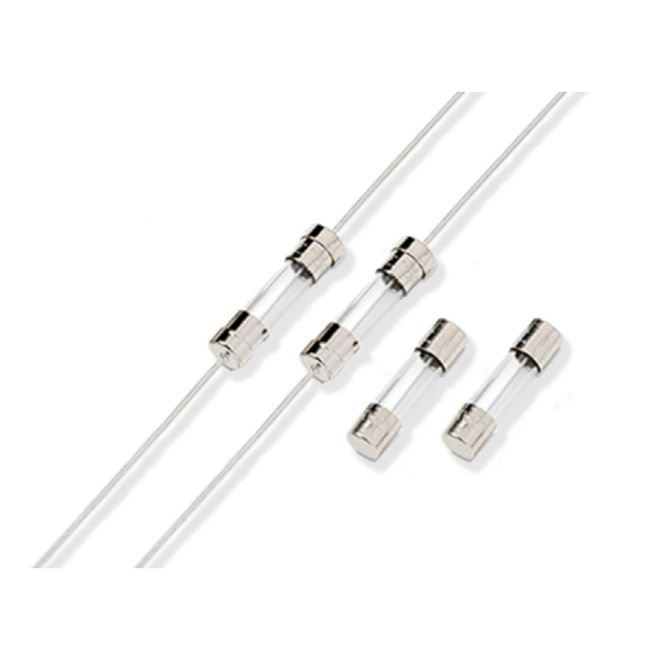

Littelfuse 217.500P Glass Fast Acting Fuses 0.5A 250V
SKU#:
27952
Littelfuse 0217.500 5×20mm fast-acting glass body cartridge fuse is designed to IEC specification. Littelfuse 217 Series fuses are used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits. Littelfuse 0217.500 is comparable to ABB Entrelec 000828815.
| Brand | Littelfuse |
|---|---|
| Manufacturer Part Number | 0217.500 |
| Manufacturer Alternate Number | 0217.500VXP |
| UPC | 07945890305 |
| Rated Voltage AC | 250VAC |
| Rated Voltage DC | 250VDC |
| Rated Current | 0.5A |
| RoHS Compliant | Yes |
| Fuse Class | Supplemental |
| Speed/Characteristic | Fast-Acting |
| Connection/Terminal Material | Tin-Plated Copper |
| Body/Insulating Material | Glass |
| Height (mm) | 5mm (0.196") |
| Width (mm) | 20mm (0.787") |
| Depth (Length) (mm) | 5mm (0.196") |
| Weight (lbs) | 0.01 |
| UOM | ea |
