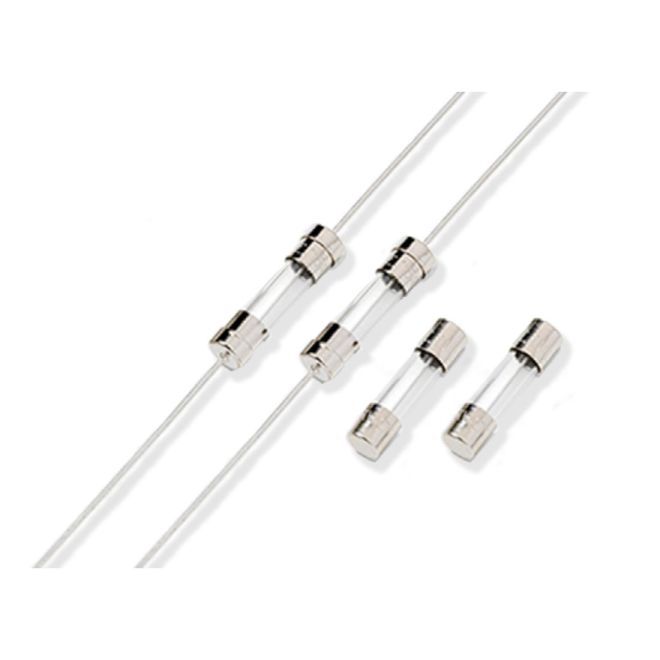

Littelfuse 217002P Glass Fast Acting Fuses 2A 250V
SKU#:
27956
Littelfuse 0217002 5×20mm fast-acting glass body cartridge fuse is designed to IEC specification. Littelfuse 217 Series fuses are used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
| Brand | Littelfuse |
|---|---|
| Manufacturer Part Number | 0217002 |
| Manufacturer Alternate Number | 0217002.VXP |
| UPC | 07945890328 |
| Rated Voltage AC | 250VAC |
| Rated Voltage DC | 250VDC |
| Rated Current | 2 A |
| RoHS Compliant | Yes |
| Fuse Class | Supplemental |
| Speed/Characteristic | Fast-Acting |
| Connection/Terminal Material | Tin-Plated Copper |
| Body/Insulating Material | Glass |
| Height (mm) | 5mm (0.196") |
| Width (mm) | 20mm (0.787") |
| Depth (Length) (mm) | 5mm (0.196") |
| Weight (lbs) | 0.01 |
| UOM | ea |
