RITTAL 1031500 300mm 380mm 210mm NEMA 4 Enclosure
SKU#:
506708

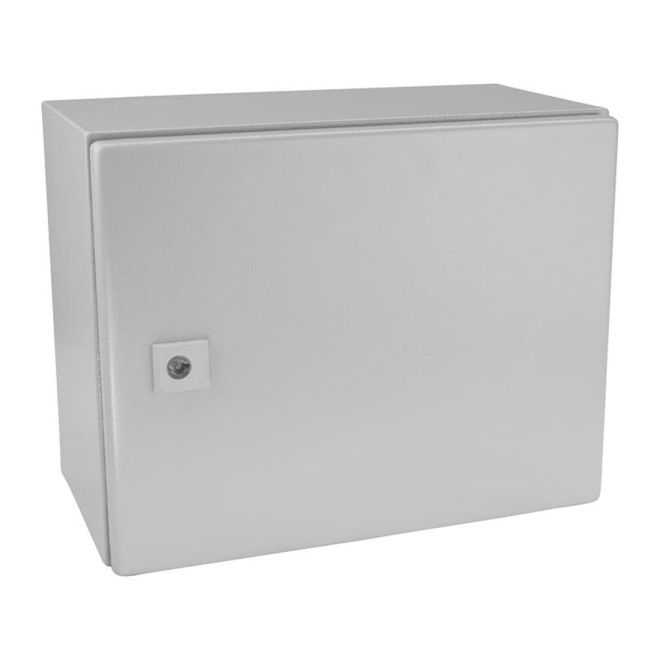

Rittal 1031500 compact AE enclosures consist of housing with door of sheet steel, spray-finished with mounting plate and flange (gland) plate in the base. Protection category up to IP 66.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 1031500 |
| Manufacturer Alternate Number | AE 1031.500 |
| UPC | 639889373426 |
| Material | Carbon Steel |
| Surface Finish | Powder-Coated |
| Color | RAL 7035 |
| UL Rating Type | NEMA 4 |
| IP Rating | IP66 |
| Supply Includes | Mounting Plate, Lock, Flange (Gland) Plate(s), Housing with Hinged Door(s) |
| Material Thickness | Housing: 1.38mm (0.05") Door: 1.5mm (0.06") |
| Mounting Plate | Zinc-Plated 275mm (11") x 334mm (13") x 2mm (0.08") |
| Latching System | Cam 3mm Double-Bit |
| Door Cover Style | Hinged |
| Height (mm) | 300mm (12") |
| Width (mm) | 380mm (15") |
| Depth (Length) (mm) | 210mm (8.3") |
| Weight (lbs) | 19.53 |
| UOM | ea |
