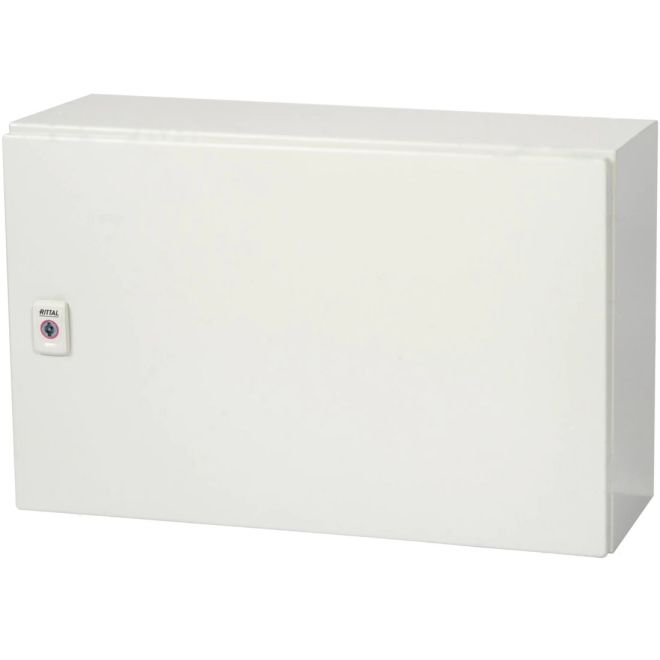

RITTAL 1039000 380mm 600mm 210mm NEMA 4 Cabinet AX
SKU#:
131493
System perfection. The new Rittal 1039000 carbon steel compact enclosure (control cabinet) AX offers maximum data quality and consistency in engineering, flexibility, and safety in assembly and interior installation.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 1039000 |
| Manufacturer Alternate Number | AX 1039.000 |
| UPC | 639889914650 |
| Material | Carbon Steel |
| Surface Finish | Powder-Coated |
| Color | RAL 7035 |
| UL Rating Type | NEMA 4 |
| IP Rating | IP66 |
| Supply Includes | Mounting Plate, Lock, Flange (Gland) Plate(s), Housing with Door(s) Swing Angle 130°, Punched Door Strip |
| Material Thickness | Housing: 1.25mm (0.05") Door: 1.5mm (0.06") |
| Mounting Plate | Zinc-Plated 355mm (14") x 550mm (22") x 2.5mm |
| Latching System | Cam 3mm Double-Bit |
| Door Cover Style | Hinged |
| Height (mm) | 380mm (15") |
| Width (mm) | 600mm (24") |
| Depth (Length) (mm) | 210mm (8.3") |
| Weight (lbs) | 33.95 |
| UOM | ea |
