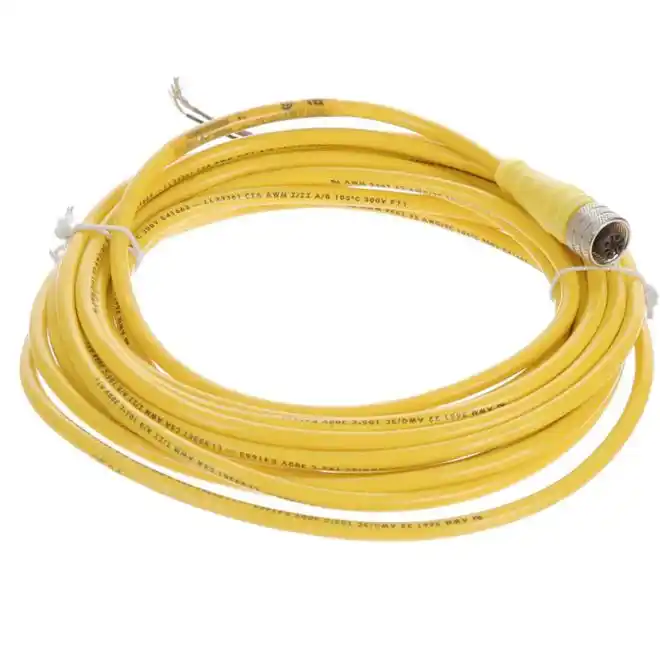

Molex 1200650277 M12 Single-Ended Cordsets/Cables
SKU#:
147174
Brad Mini-Change Connectors are the standard by which all miniature connectors are measured. First introduced in 1968, the Mini-Change connector pioneered the market for rugged, sealed connectors in industrial applications. Molex 1200650277 Brad 804000A09M100 connectors provided the first quick-connect alternative to hard-wiring. Mini-Change connectors are available in a wide variety of circuits and configurations, with pole configurations available in 2 through 12, 14 and 19. With Mini-Change connectors, industrial device wiring is easier to install and maintain. To ensure a consistent, low-resistance connection, the patented Quad Beamâ„¢ female contact is used. Connectors are sealed to provide IP67 protection. An anti-vibration feature prevents the coupler from loosening, even under extreme conditions.
| Brand | Molex / Daniel Woodhead / Brad Harrison |
|---|---|
| Manufacturer Part Number | 1200650277 |
| Manufacturer Alternate Number | 120065-0277 |
| UPC | 78678824739 |
| Cable Material | PVC |
| Size | M12 |
| Supply Voltage Range | 250VAC, 250VDC |
| Socket or Plug | Female Socket |
| Type | Cordset |
| Wire Size | 22 AWG |
| Number of Pins/Wires | 4 |
| Connector Shape | Straight |
| Cable Length | 10m |
| Color | Yellow |
| IP Rating | IP67 |
| Rated Current | 4 A |
| Height (mm) | 5.4mm |
| Width (mm) | 5.2mm / 0.205 inch |
| Depth (Length) (mm) | 10m |
| Weight (lbs) | 0.85 |
| UOM | ea |
