BRYANT 1254I Straight Receptacle Quad-PLEX 15A 125V
SKU#:
126343

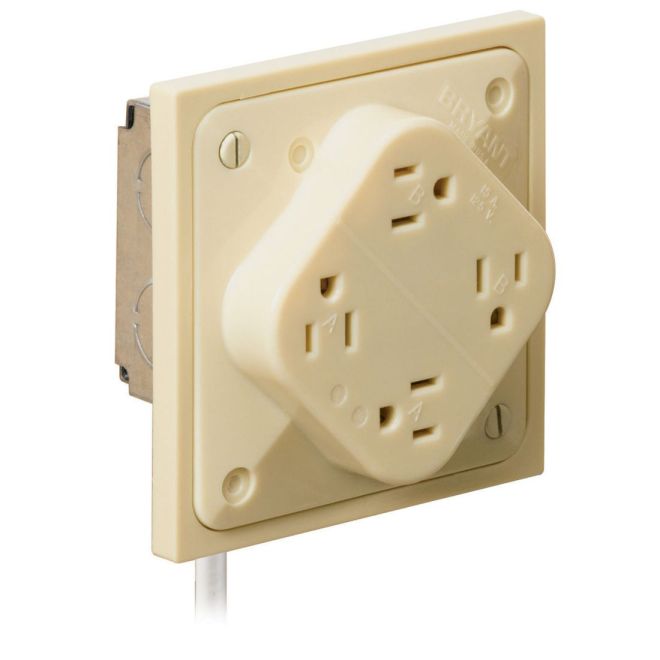

BRYANT 1254I Mounts directly to 4" square or octagon boxes. No cover plate required. Can be retrofitted to 1 and 2-gang device boxes, mud rings on 4" boxes or 4⁄₁₆" boxes using adapter plate. Rugged impact resistant construction. Break-off tabs for split circuit wiring (except surge units).
| Brand | BRYANT / Hubbell |
|---|---|
| Manufacturer Part Number | 1254I |
| Manufacturer Alternate Number | 1254-I |
| UPC | 781786336261 |
| Color | White |
| UL Rating Type | NEMA 5-15R |
| Rated Current | 15A |
| Power Phase | 1-Phase |
| Type | Receptacle |
| Number of Pins/Wires | 3 |
| Rated Voltage | 125V |
| Number of Poles | 2 |
| Height (mm) | 110mm |
| Width (mm) | 110mm |
| Depth (Length) (mm) | 24mm |
| Weight (lbs) | 0.4 |
| UOM | ea |
