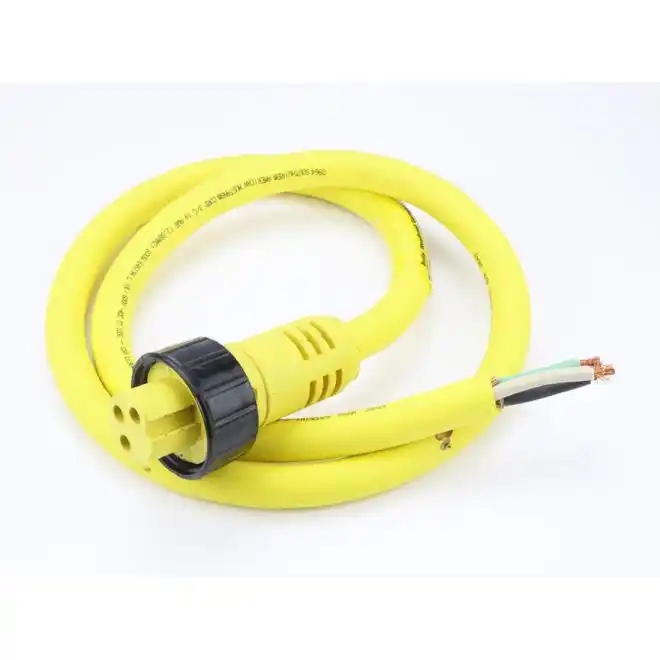

Molex 1300000042 Quick-Change Single-Ended Cordset
SKU#:
19106
From the harsh chemical wash-down of food processing, to the high-temperatures of steel production or the caustic humidity of pulp/paper production, heavy-duty power requirements demand rugged connector products. Molex 1300000042 Brad 32322 Quick-Change connectors are constructed to deliver years of uninterrupted performance in these demanding applications. They are available in 2 to 4 pole configurations, with ratings up to 30.0A. Molded in bright yellow, Quick-Change connectors provide enhanced visibility for safety. A positive key alignment reduces the possibility of mis-mating. An IP67 seal keeps out water and contaminants.
| Manufacturer Part Number | 1300000042 |
|---|---|
| Manufacturer Alternate Number | 130000-0042 |
| UPC | 78678832322 |
| Cable Material | CPE |
| Supply Voltage Range | 600 V |
| Socket or Plug | Female Socket |
| Type | Cordset |
| Wire Size | 14 AWG |
| Number of Pins/Wires | 3 |
| Connector Shape | Straight |
| Cable Length | 0.91m |
| Color | Yellow |
| IP Rating | IP67 |
| Rated Current | 18A |
| Weight (lbs) | 0.79 |
| UOM | ea |
