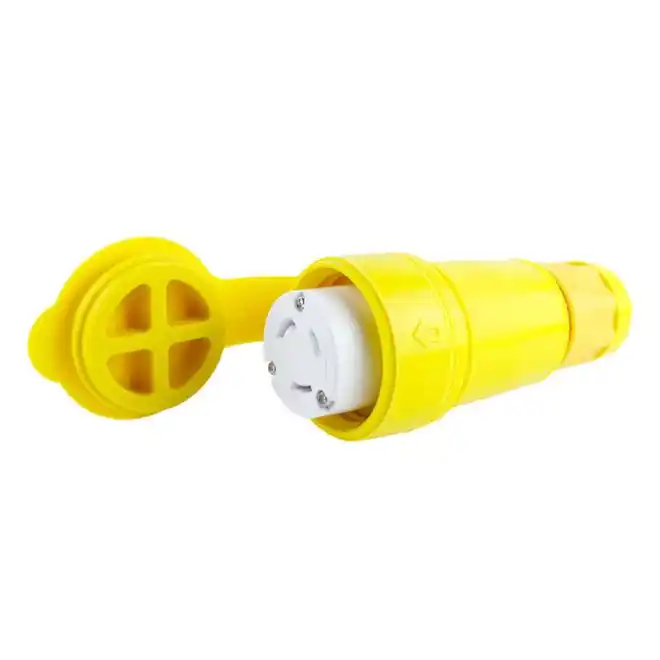

Molex 1301470093 30A 125V 2-Pole 3-Wire Connectors
SKU#:
15486
Provide the ultimate resistance to impact, heat, weather and chemicals. Molex 1301470093 Woodhead 29W47 Watertiteâ„¢ Extreme's oil-resistant Advanced Vulcanized Rubber compound is uniquely suited to withstand chemical abuse and exposure in petrochemical environments, while the anti-microbial version of this material inhibits bacteria growth.
| Manufacturer Part Number | 1301470093 |
|---|---|
| Manufacturer Alternate Number | 130147-0093 |
| UPC | 78678871331 |
| Color | Yellow |
| UL Rating Type | NEMA L5-30 |
| IP Rating | IP67 |
| Rated Current | 30A |
| Power Phase | 1-Phase |
| Type | Connector |
| Number of Pins/Wires | 3 |
| Rated Voltage | 125V |
| Number of Poles | 2 |
| Locking Blade | Yes |
| Weight (lbs) | 0.28 |
| UOM | ea |
