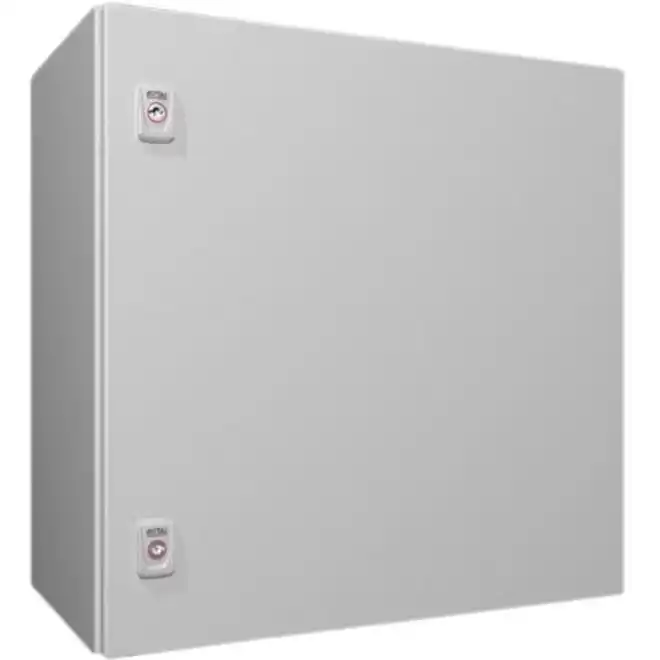

RITTAL 1360000 600mm 600mm 350mm NEMA 4 Enclosures
SKU#:
608230
System perfection. The new Rittal 1360000 carbon steel compact enclosure (control cabinet) AX offers maximum data quality and consistency in engineering, flexibility, and safety in assembly and interior installation.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 1360000 |
| Manufacturer Alternate Number | AX 1360.000 |
| UPC | 639889914872 |
| Material | Carbon Steel |
| Surface Finish | Powder-Coated |
| Color | RAL 7035 |
| UL Rating Type | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| IP Rating | IP66 |
| Supply Includes | Mounting Plate, Lock, Flange (Gland) Plate(s), Housing with Door(s), Punched Door Strip |
| Material Thickness | Housing: 1.5mm (0.06") Door: 1.5mm (0.06") |
| Mounting Plate | Zinc-Plated 550mm (21.65") x 575mm (22.6") x 2.5mm (0.1") |
| Latching System | Cam 3mm Double-Bit |
| Door Cover Style | Hinged |
| Height (mm) | 600mm (23.6") |
| Width (mm) | 600mm (23.6") |
| Depth (Length) (mm) | 350mm (13.8") |
| Weight (lbs) | 57.98 |
| UOM | ea |
