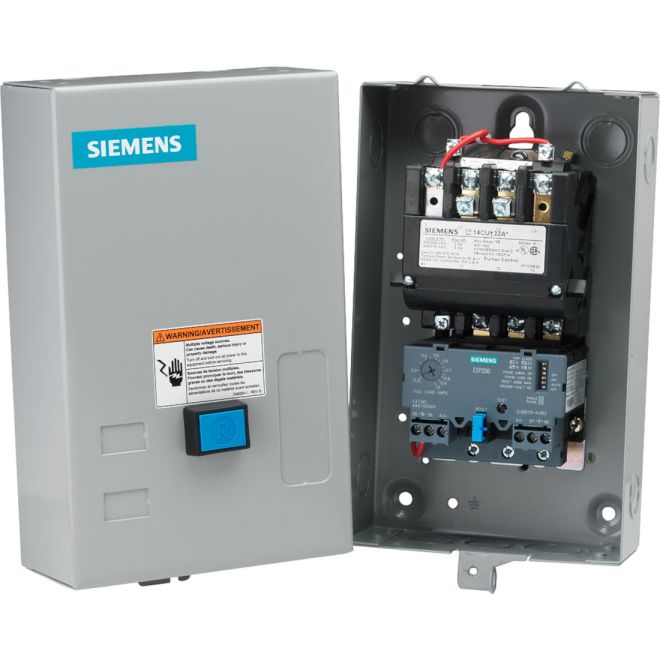

SIEMENS 14DUD32BA Non-Reversing Motor Starters
SKU#:
446628
SIEMENS 14DUD32BA is a non-reversing motor starter Size 1 Three phase full voltage Solid state overload relay amp range 5.5A to 22A 110VAC to 120VAC/220VAC to 240VAC 60HZ coil Combination type Indoor general purpose use.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 14DUD32BA |
| UPC | 783087818040 |
| Rated Voltage | 110VAC-120VAC/220VAC-240VAC |
| Rated Current | 5.5A - 22A |
| Electrical Connection | Screw Terminals |
| IP Rating | IP20 |
| Operating Temperature | -20°C - +40°C |
| Number of Poles | 3 |
| Type | Non-Reversing |
| HP | 3-Phase: 3hp at 200VAC/208VAC, 3hp at 220VAC/230VAC, 10hp at 460VAC/480VAC, 10hp at 575VAC/600VAC |
| Duty Cycles | 10,000,000 |
| Trip Characteristic | Class 5/10/20 (Factory Set)/30 |
| Mounting Type | Surface Vertical |
| Height (mm) | 280mm |
| Width (mm) | 178mm |
| Depth (Length) (mm) | 127mm |
| Weight (lbs) | 8.00 |
| UOM | ea |
