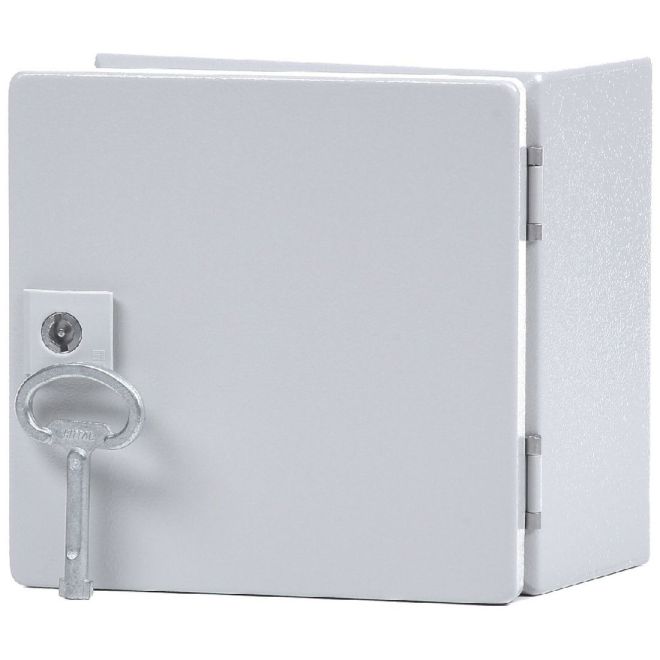

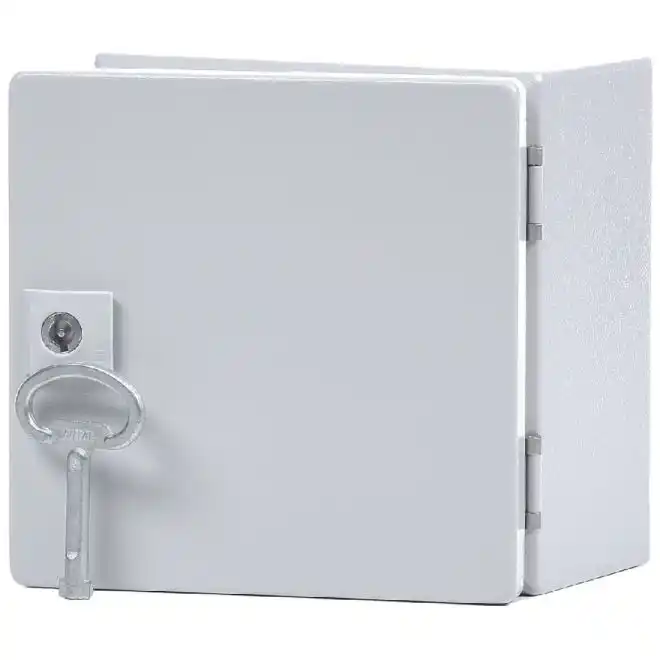

RITTAL 1549500 Wall Mounted E-Box EB 1549.500
SKU#:
320091
Rittal 1549500 E-Box EB is a wall-mounted housing with door and mounting plate made from sheet steel. Protection category IP 66. With 180° hinge. Lock insert may be exchanged for individual lock systems.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 1549500 |
| Manufacturer Alternate Number | EB 1549.500 |
| UPC | 639889374249 |
| Material | Carbon Steel |
| Surface Finish | Powder-Coated |
| Color | RAL 7035 |
| UL Rating Type | NEMA 4 |
| IP Rating | IP66 |
| Supply Includes | Mounting Plate, Lock, Housing with Hinged Door(s) Swing Angle 180° |
| Material Thickness | Housing: 1.25mm (0.05") Door: 1.25mm (0.05") |
| Mounting Plate | Zinc-Plated 185mm (7.3") x 175mm (6.9") x 2mm (0.08") |
| Latching System | Cam 3mm Double-Bit |
| Door Cover Style | Hinged |
| Height (mm) | 200mm (7.9") |
| Width (mm) | 200mm (7.9") |
| Depth (Length) (mm) | 120mm (4.7") |
| Weight (lbs) | 7.17 |
| UOM | ea |
