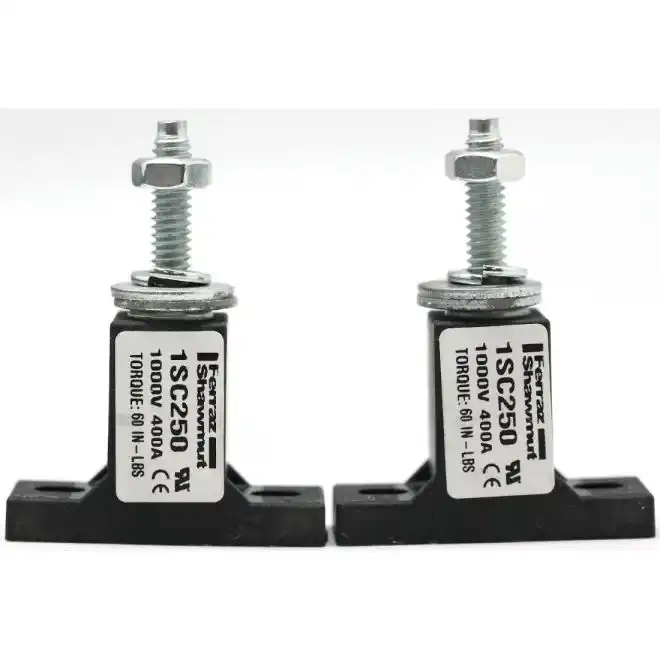

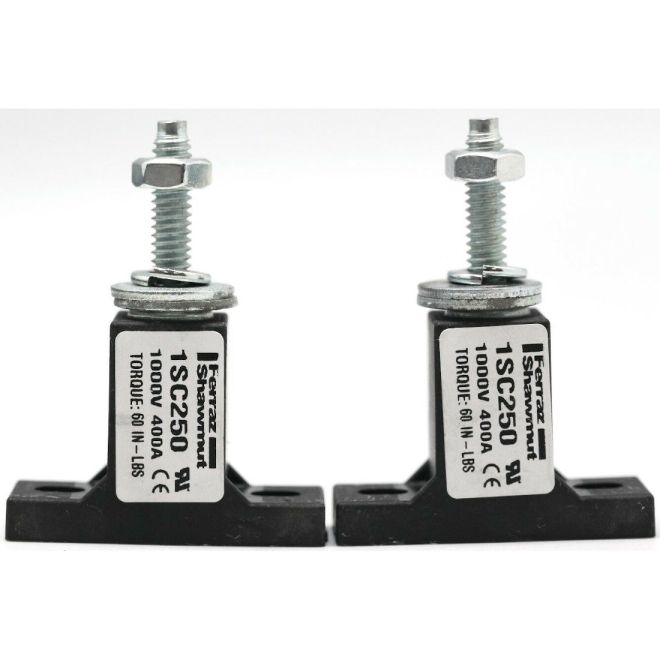

Mersen 1SC250 Ferraz Semiconductor Fuse Block
SKU#:
167062
Mersen 1SC and 1MSC semiconductor fuse blocks feature modular mounting that offers greater flexibility in adjusting to various fuse lengths. Both stud type and integral box connector versions are offered to allow for user preference of wire terminations. The integral box connector versions also provide for greater heat dissipation. Mounting hardware is supplied with 1SC250 blocks.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | 1SC250 |
| Manufacturer Alternate Number | H210595 |
| UPC | 782001258290 |
| Rated Voltage AC | 1500VAC |
| Rated Voltage DC | 1500VDC |
| Rated Current | 400A |
| RoHS Compliant | Yes |
| Fuse Class | Semiconductor |
| Mounting Type | Direct Screw Mount |
| Terminal Type | Stud |
| Body/Insulating Material | Thermoplastic |
| Short Circuit Current Rating (SCCR) | 200kA |
| Fuse Installation Method | Bolt-in |
| Max Fuse Rating | 400A |
| Number of Poles | 1 |
| Type | Open Style |
| Height (mm) | 18mm (0.71") |
| Width (mm) | 63mm |
| Depth (Length) (mm) | 48mm |
| Weight (lbs) | 0.20 |
| UOM | ea |
