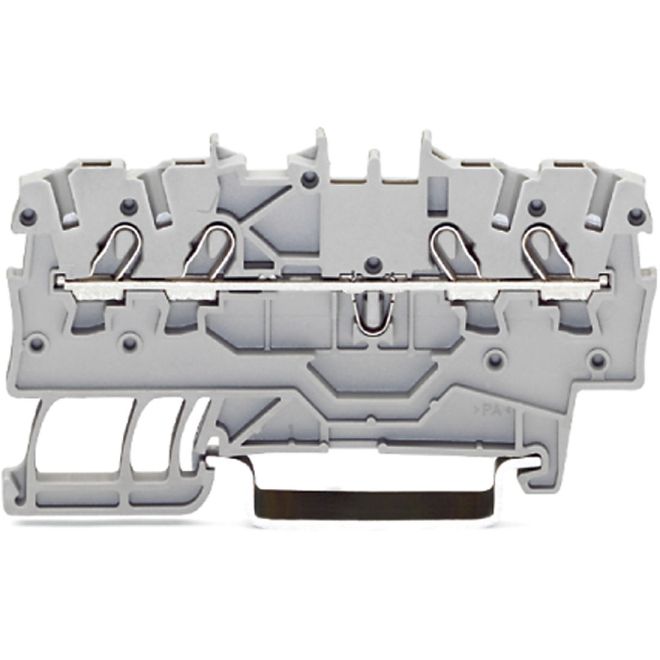

WAGO 2000-1401 TOPJOB®S Feedthrough Terminal Block
SKU#:
417466
The first member of WAGO 2000-1401 TOPJOB®S family and the one that started the "push-in" wiring revolution for rail mount terminal blocks. It introduced direct push-in of solid or ferruled conductors while also allowing traditional tool operation for all conductor types, just like the original CAGE CLAMP®. Open Tool Slot advantages include: Simple - insert tool, insert conductor, remove tool - done, Innovative - industry's first push-in wiring rail mount terminal block, Secure - inserted tool is locked into place for hands-free wiring, Hands-free - means both hands are free to cut, strip and insert the conductor.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 2000-1401 |
| Manufacturer Alternate Number | 51221386 |
| UPC | 4045454966928 |
| Electrical Connection | Push-in CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.14mm2 - 1.5mm2 / 24 - 16 AWG |
| Fine-Stranded Conductor with Ferrule Wire Range | 0.5mm2 - 0.75mm2 / 20 - 18 AWG |
| Total Number of Connection Points | 4 |
| Total Number of Potentials | 1 |
| Strip Length | 9mm - 11mm / 0.35 - 0.43 inch |
| Number of Levels | 1 |
| Number of Jumper Slots | 2 |
| Type of Wiring | Front-Entry Wiring |
| Mounting Type | DIN-35 Rail |
| Color | Gray |
| Height (mm) | 67.9mm (2.673") |
| Width (mm) | 3.5mm / 0.138 inch |
| Weight (lbs) | 0.01 |
| UOM | ea |
