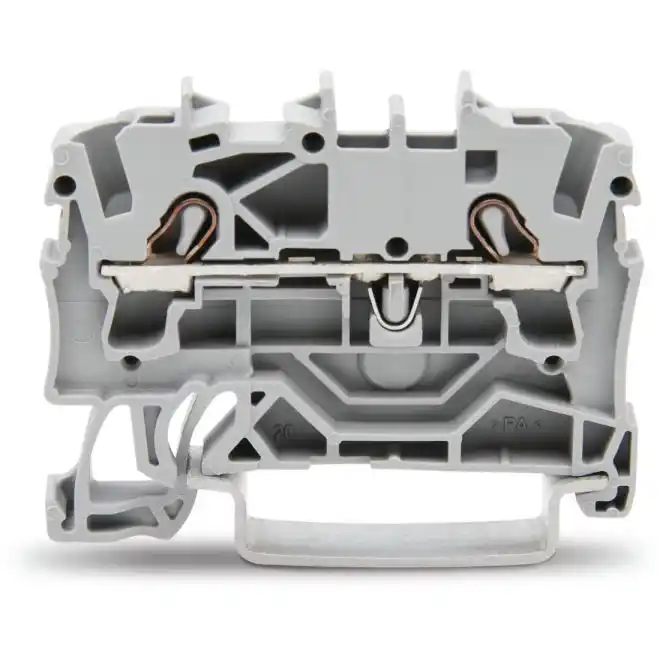

WAGO 2002-1201 Feedthrough Terminals Gray

SKU#:

306019

The first member of WAGO 2002-1201 TOPJOB®S family and the one that started the "push-in" wiring revolution for rail mount terminal blocks. It introduced direct push-in of solid or ferruled conductors while also allowing traditional tool operation for all conductor types, just like the original CAGE CLAMP®. Open Tool Slot advantages include: Simple - insert tool, insert conductor, remove tool - done, Innovative - industry's first push-in wiring rail mount terminal block, Secure - inserted tool is locked into place for hands-free wiring, Hands-free - means both hands are free to cut, strip and insert the conductor. WAGO 2002-1201 is comparable to Phoenix Contact 3209510, ABB 1SNK705010R0000, Allen-Bradley 1492-J4, Entrelec 011511607, 11511607.
Specifications
Brand WAGO
Manufacturer Part Number 2002-1201
Manufacturer Alternate Number 20021201
UPC 4017332999168
Electrical Connection Push-in CAGE CLAMP®
Fine-Stranded Conductor Wire Range 0.25mm2 - 4mm2 / 22 - 12 AWG
Fine-Stranded Conductor with Ferrule Wire Range 1mm2 - 2.5mm2 / 18 - 14 AWG
Total Number of Connection Points 2
Total Number of Potentials 1
Strip Length 10mm - 12mm / 0.39 - 0.47 inch
Number of Levels 1
Number of Jumper Slots 2
Type of Wiring Front-Entry Wiring
Mounting Type DIN-35 Rail
Color Gray
Height (mm) 32.9mm / 1.295 inch
Width (mm) 5.2mm / 0.205 inch
Depth (Length) (mm) 48.5mm / 1.909 inch
Weight (lbs) 0.01
UOM ea
