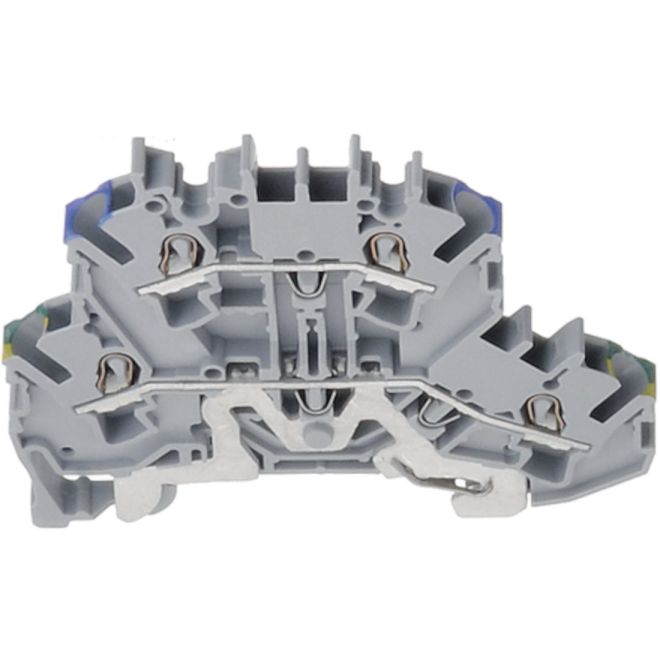

WAGO 2002-2217 Double-Deck Terminals Gray
SKU#:
322705
WAGO Rail-Mount Through Terminal Blocks are available in three different actuation variants: lever, push-button or open tool slot - the right rail-mount terminal block for every application. The marking system and the multifunctional range of jumpers for the well-known WAGO 2002-2217 TOPJOB®S Rail-Mount Terminal Blocks can also be used for the new rail-mount terminal blocks with levers. TOPJOB®S Through Terminal Blocks are available as single-deck, double-deck and triple-deck versions, as well as quadruple-deck terminal blocks for, e.g., electric motor wiring.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 2002-2217 |
| Manufacturer Alternate Number | 20022217 |
| UPC | 4044918691123 |
| Electrical Connection | Push-in CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.25mm2 - 4mm2 / 22 - 12 AWG |
| Fine-Stranded Conductor with Ferrule Wire Range | 1mm2 - 2.5mm2 / 18 - 14 AWG |
| Total Number of Connection Points | 4 |
| Total Number of Potentials | 2 |
| Strip Length | 10mm - 12mm / 0.39 - 0.47 inch |
| Number of Levels | 2 |
| Number of Jumper Slots | 4 |
| Type of Wiring | Front-Entry Wiring |
| Mounting Type | DIN-35 Rail |
| Color | Gray |
| Height (mm) | 441mm (17.35") |
| Width (mm) | 5.2mm / 0.205 inch |
| Depth (Length) (mm) | 69.7mm / 2.744 inch |
| Weight (lbs) | 0.03 |
| UOM | ea |
