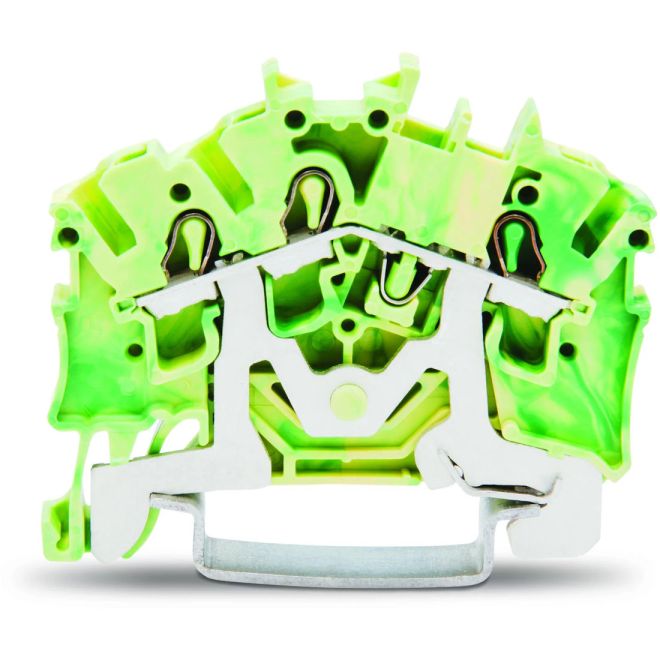

WAGO 2002-6307 Ground Terminals Green-Yellow
SKU#:
322739
Fast installation, completely vibration-proof and maintenance-free: WAGO's 2002-6307 rail-mount terminal block systems use proven spring pressure connection technology, reducing service costs and increasing system uptime and reliability. Your benefits include: Complete, high-performance line of terminal blocks for every application, The highest level of safety: testing above and beyond the scope of industrial standards, Industry-proven spring pressure connection technology: fast, vibration-proof and maintenance-free, Additional savings through shorter wiring times, faster project commissioning and the elimination of service costs due to maintenance-free connections, Eliminate time-consuming preparation - no ferrules or crimping required.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 2002-6307 |
| Manufacturer Alternate Number | 20026307 |
| UPC | 4044918964968 |
| Electrical Connection | Push-in CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.25mm2 - 4mm2 / 22 - 12 AWG |
| Fine-Stranded Conductor with Ferrule Wire Range | 1mm2 - 2.5mm2 / 18 - 14 AWG |
| Total Number of Connection Points | 3 |
| Total Number of Potentials | 1 |
| Strip Length | 10mm - 12mm / 0.39 - 0.47 inch |
| Number of Levels | 1 |
| Number of Jumper Slots | 2 |
| Type of Wiring | Front-Entry Wiring |
| Mounting Type | DIN-35 Rail |
| Color | Green-Yellow |
| Height (mm) | 38.9mm / 1.531 inch |
| Width (mm) | 5.2mm / 0.205 inch |
| Depth (Length) (mm) | 52.6mm / 2.071 inch |
| Weight (lbs) | 0.02 |
| UOM | ea |
