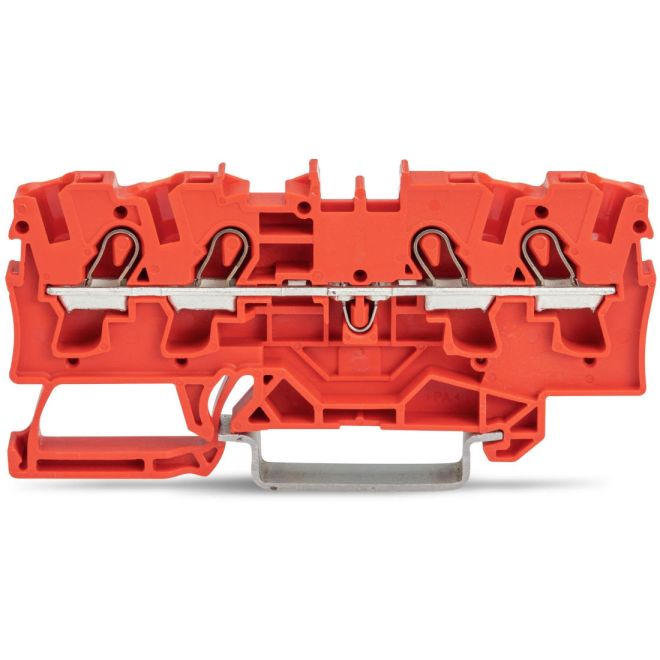

WAGO 2004-1403 Feedthrough Terminal Blocks Red
SKU#:
414793
The first member of WAGO 2004-1403 TOPJOB®S family and the one that started the "push-in" wiring revolution for rail mount terminal blocks. It introduced direct push-in of solid or ferruled conductors while also allowing traditional tool operation for all conductor types, just like the original CAGE CLAMP®. Open Tool Slot advantages include: Simple - insert tool, insert conductor, remove tool - done, Innovative - industry's first push-in wiring rail mount terminal block, Secure - inserted tool is locked into place for hands-free wiring, Hands-free - means both hands are free to cut, strip and insert the conductor.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 2004-1403 |
| Manufacturer Alternate Number | 20041403 |
| UPC | 4045454537494 |
| Electrical Connection | Push-in CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.5mm2 - 6mm2 / 20 - 10 AWG |
| Fine-Stranded Conductor with Ferrule Wire Range | 1.5mm2 - 4mm2 / 18 - 12 AWG |
| Total Number of Connection Points | 4 |
| Total Number of Potentials | 1 |
| Strip Length | 11mm - 13mm / 0.43 - 0.51 inch |
| Number of Levels | 1 |
| Type of Wiring | Front-Entry Wiring |
| Mounting Type | DIN-35 Rail |
| Color | Red |
| Height (mm) | 32.9mm / 1.295 inch |
| Width (mm) | 6.2mm / 0.244 inch |
| Depth (Length) (mm) | 78.7mm / 3.098 inch |
| Weight (lbs) | 0.02 |
| UOM | ea |
