WAGO 2006-1204 Feedthrough Terminals Blue
SKU#:
306097
The first member of WAGO 2006-1204 TOPJOB®S family and the one that started the "push-in" wiring revolution for rail mount terminal blocks. It introduced direct push-in of solid or ferruled conductors while also allowing traditional tool operation for all conductor types, just like the original CAGE CLAMP®. Open Tool Slot advantages include: Simple - insert tool, insert conductor, remove tool - done, Innovative - industry's first push-in wiring rail mount terminal block, Secure - inserted tool is locked into place for hands-free wiring, Hands-free - means both hands are free to cut, strip and insert the conductor.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 2006-1204 |
| Manufacturer Alternate Number | 20061204 |
| UPC | 4017332999656 |
| Electrical Connection | Push-in CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.5mm2 - 10mm2 / 20 - 8 AWG |
| Fine-Stranded Conductor with Ferrule Wire Range | 2.5mm2 - 6mm2 / 16 - 10 AWG |
| Total Number of Connection Points | 2 |
| Total Number of Potentials | 1 |
| Strip Length | 13mm - 15mm / 0.51 - 0.59 inch |
| Number of Levels | 1 |
| Number of Jumper Slots | 2 |
| Type of Wiring | Front-Entry Wiring |
| Mounting Type | DIN-35 Rail |
| Color | Blue |

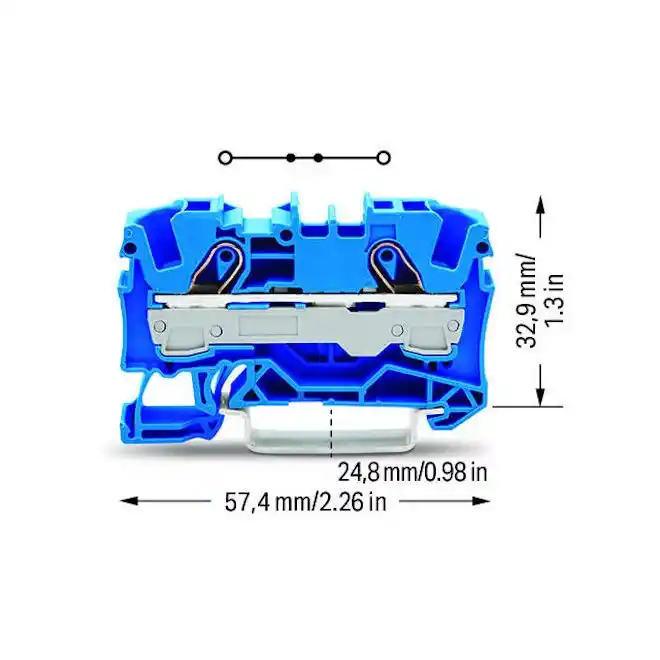

| Height (mm) | 32.9mm / 1.295 inch |
| Width (mm) | 7.5mm / 0.295 inch |
| Depth (Length) (mm) | 57.5mm / 2.264 inch |
| Weight (lbs) | 0.02 |
| UOM | ea |
