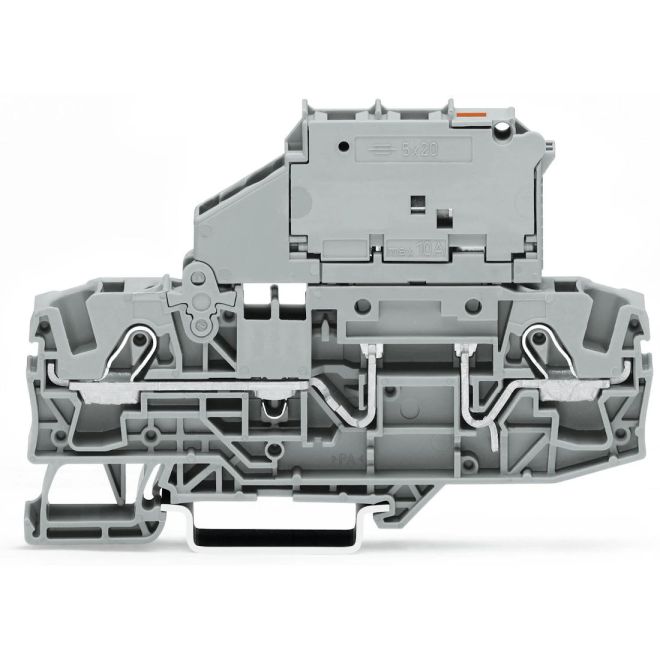

WAGO 2006-1611/1000-541 Fuse Disconnect Terminals
SKU#:
429357
WAGO TOPJOB®S Fuse Terminal Blocks protect electrical circuits against short circuits and ensure fail-safe system operation. WAGO 2006-1611/1000-541 fuse terminal blocks are designed for miniature metric fuses or blade-style fuses. Your benefits include: Terminal blocks can be assembled into strips, Simple and safe replacement of fuses, Optional LED indicator quickly identifies blown fuses, Fuse terminal blocks can be created with little assembly and wiring effort via carrier terminal blocks and fuse plugs.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 2006-1611/1000-541 |
| Manufacturer Alternate Number | 51210369 |
| UPC | 4045454823962 |
| Electrical Connection | Push-in CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.5mm2 - 10mm2 / 20 - 8 AWG |
| Fine-Stranded Conductor with Ferrule Wire Range | 2.5mm2 - 6mm2 / 16 - 10 AWG |
| Total Number of Connection Points | 2 |
| Total Number of Potentials | 1 |
| Strip Length | 13mm - 15mm / 0.51 - 0.59 inch |
| Number of Levels | 1 |
| Number of Jumper Slots | 2 |
| Type of Wiring | Front-Entry Wiring |
| Mounting Type | DIN-35 Rail |
| Color | Gray |
| Height (mm) | 59mm / 2.323 inch |
| Width (mm) | 7.5mm / 0.295 inch |
| Depth (Length) (mm) | 96.3mm / 3.791 inch |
| Weight (lbs) | 0.06 |
| UOM | ea |
