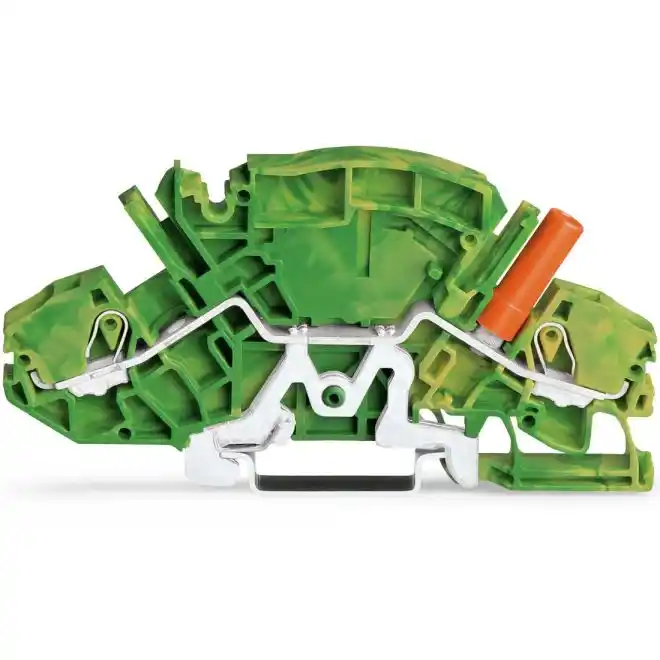

WAGO 2007-8807 Ground Terminal Blocks Green-Yellow

SKU#:

430465

WAGO's 2007-8807 disconnect/test terminal blocks allow you to quickly and safely disconnect circuits. The orange-colored knife disconnects or disconnect plugs are located between the conductors and are always visible to the operator. Your benefits include: Alternative disconnect options: Via pivoting knife disconnect and additional mechanical interlock or via disconnect plug, Save space with double-deck, double-disconnect terminal blocks: Two potential-free disconnect terminal blocks on two levels, Service-friendly testing for potential ground faults via ground conductor disconnect terminal blocks, Also ideal for applications in the renewable energy sector with voltages up to 1,500 VDC (2006 Series), Same shape as corresponding through terminal blocks provides clear sightlines, A wide variety of jumpers for safe and economical circuit requirements.
Specifications
Brand WAGO
Manufacturer Part Number 2007-8807
Manufacturer Alternate Number 51299477
UPC 4055143074773
Electrical Connection Push-in CAGE CLAMP®
Fine-Stranded Conductor Wire Range 0.5mm2 - 10mm2 / 20 - 8 AWG
Fine-Stranded Conductor with Ferrule Wire Range 2.5mm2 - 6mm2 / 16 - 10 AWG
Total Number of Connection Points 2
Total Number of Potentials 1
Strip Length 13mm - 15mm / 0.51 - 0.59 inch
Number of Levels 1
Number of Jumper Slots 2
Type of Wiring Front-Entry Wiring
Mounting Type DIN-35 Rail
Color Green-Yellow
Height (mm) 99.6mm / 3.921 inch
Width (mm) 8mm / 0.315 inch
Weight (lbs) 0.07
UOM ea
