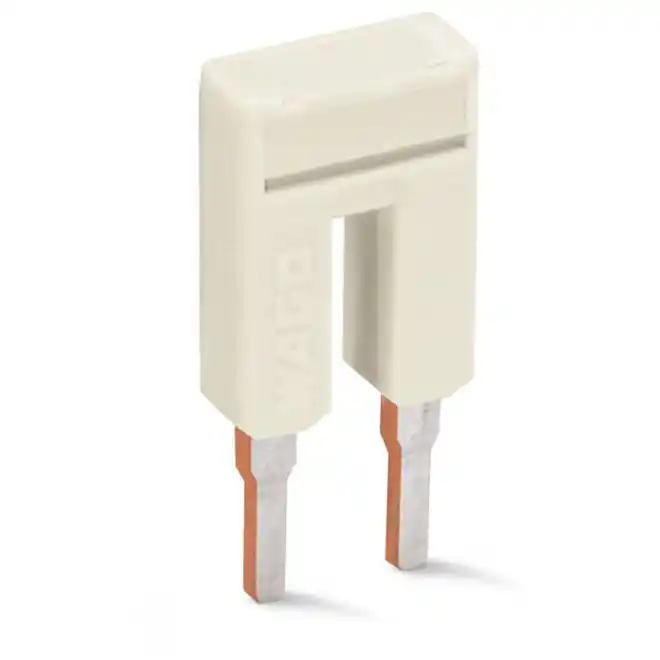

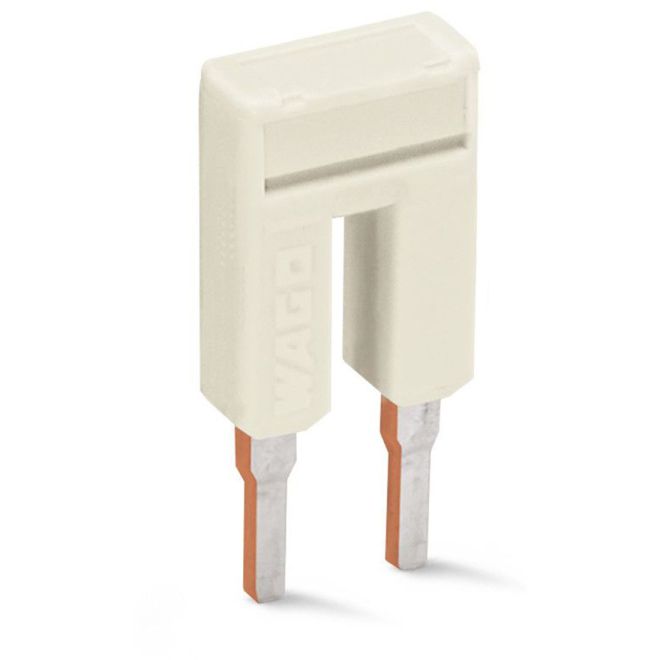

WAGO 2010-402 Jumpers Insulated Light-Gray
SKU#:
306129
Having the right accessories available is an important consideration when selecting the right terminal block for your application. With the broadest range of accessories in the industry, WAGO 2010-402 TOPJOB®S family of accessories not only increases safety and functionality, but they also reduce assembly time, troubleshooting and costs. Advantages include: Exclusive jumper retention spring securely holds the jumpers in place, Industry's most comprehensive jumper offering simplifies complex wiring tasks, Multi-line, continuous strip marking is fast, economical and clearly identified, one family - accessories fit all TOPJOB®S terminal blocks in the same series.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 2010-402 |
| Manufacturer Alternate Number | 60359665 |
| UPC | 4055143701938 |
| Rated Voltage | 800V |
| Rated Current | 57A |
| Jumper Assignment | 2-Way |
| Color | Light Gray |
| Height (mm) | 23mm / 0.906 inch |
| Width (mm) | 17.5mm / 0.689 inch |
| Depth (Length) (mm) | 4.1mm / 0.161 inch |
| Weight (lbs) | 0.01 |
| UOM | ea |
