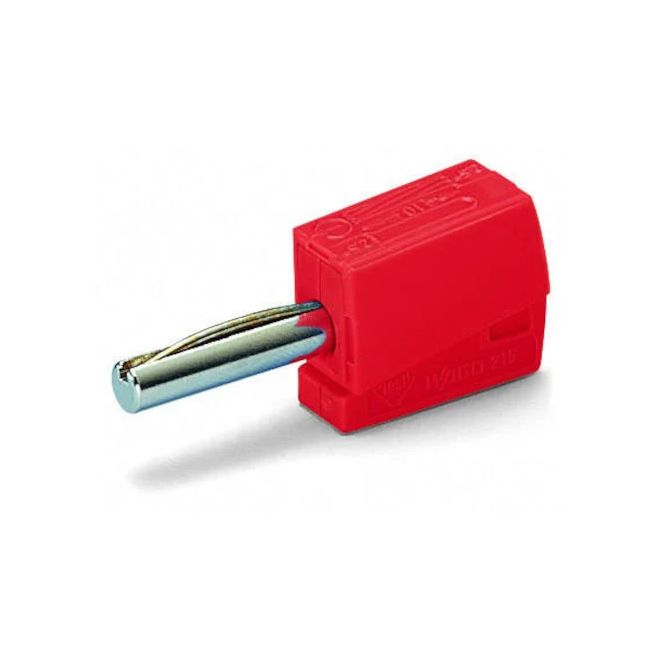

WAGO 215-212 Banana Plugs for Socket 4mm Ø Red
SKU#:
321194
Having the right accessories available is an important consideration when selecting the right terminal block for your application. With the broadest range of accessories in the industry, WAGO 215-212 TOPJOB®S family of accessories not only increases safety and functionality, but they also reduce assembly time, troubleshooting and costs. Advantages include: Exclusive jumper retention spring securely holds the jumpers in place, Industry's most comprehensive jumper offering simplifies complex wiring tasks, Multi-line, continuous strip marking is fast, economical and clearly identified, one family - accessories fit all TOPJOB®S terminal blocks in the same series.
| Manufacturer Part Number | 215-212 |
|---|---|
| Manufacturer Alternate Number | 51174952 |
| UPC | 4045454293482 |
| Brand | WAGO |
| Electrical Connection | CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.08mm2 - 2.5mm2 / 28 - 14 AWG |
| Strip Length | 9mm - 11mm / 0.35 - 0.43 inch |
| Total Number of Connection Points | 1 |
| Total Number of Potentials | 1 |
| Test Voltage | 42V |
| Rated Current | 20A |
| Color | Red |
| Height (mm) | 15mm / 0.591 inch |
| Width (mm) | 8mm / 0.315 inch |
| Depth (Length) (mm) | 40mm / 1.575 inch |
| Weight (lbs) | 0.01 |
| UOM | ea |
