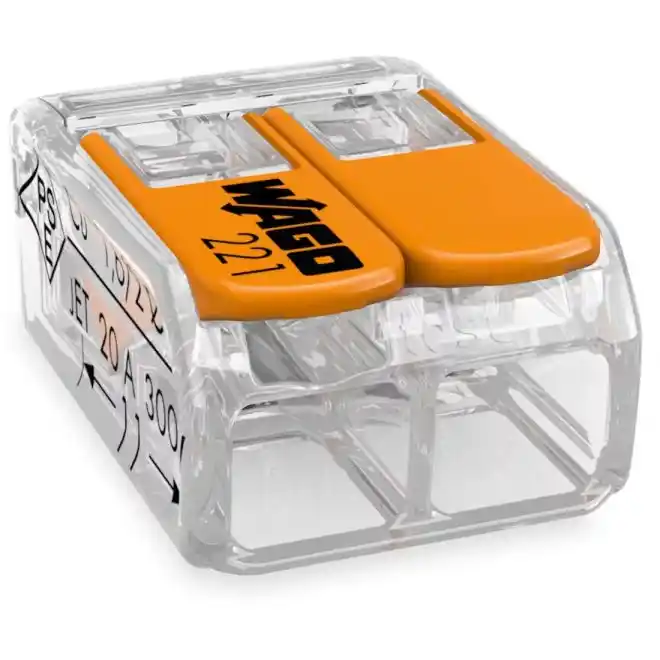

WAGO 221-412 COMPACT Splicing Connectors Levers

SKU#:

566882

From intercom system wiring, to electrical ovens to hazardous locations: Connecting different conductor types is quick and easy with WAGO's compact 221 Series 221-412/K194-4045/000-100 Splicing Connector. Your benefits include: Connect all conductor types without preparing them, Combine any conductor types and sizes, Easy-to-use operating lever for tool-free terminations, Perfect for distribution applications thanks to mounting carrier.
Specifications
Brand WAGO
Manufacturer Part Number 221-412/K194-4045/000-100
Manufacturer Alternate Number 2210412
UPC 4050821808435
Electrical Connection CAGE CLAMP®
Fine-Stranded Conductor Wire Range 0.14mm2 - 4mm2 / 24 - 12 AWG
Total Number of Connection Points 2
Total Number of Potentials 1
Strip Length 11mm / 0.43 inch
Type of Wiring Side-Entry Wiring
Color Transparent, Orange
Height (mm) 8.3mm / 0.327 inch
Width (mm) 13.1mm / 0.516 inch
Depth (Length) (mm) 18.6mm / 0.732 inch
Weight (lbs) 0.01
UOM ea
