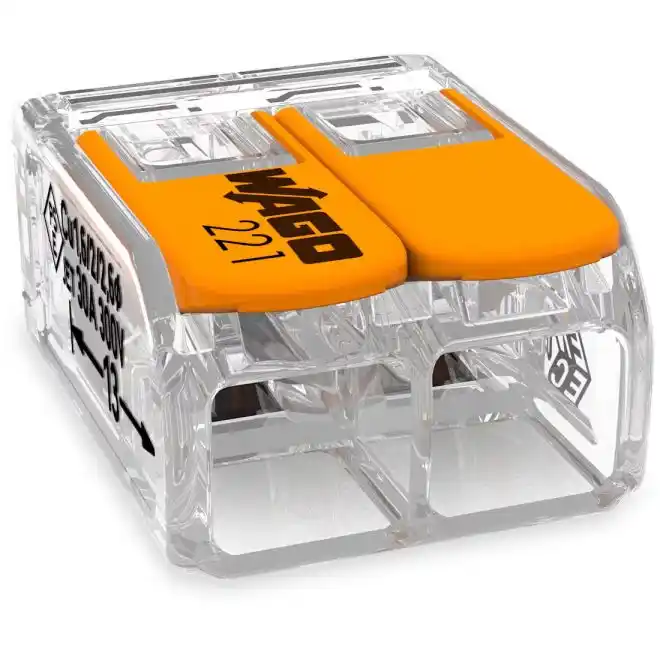

WAGO 221-612 COMPACT Splicing Connectors Levers
SKU#:
569960
From intercom system wiring, to electrical ovens to hazardous locations: Connecting different conductor types is quick and easy with WAGO's compact 221 Series 221-612/K194-4045/000-50 Splicing Connector. Your benefits include: Connect all conductor types without preparing them, Combine any conductor types and sizes, Easy-to-use operating lever for tool-free terminations, Perfect for distribution applications thanks to mounting carrier.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 221-612/K194-4045 |
| Manufacturer Alternate Number | 60359996 |
| UPC | 4055143704168 |
| Electrical Connection | CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.5mm2 - 6mm2 / 20 - 10 AWG |
| Total Number of Connection Points | 2 |
| Total Number of Potentials | 1 |
| Strip Length | 12mm - 14mm / 0.47 - 0.55 inch |
| Type of Wiring | Side-Entry Wiring |
| Color | Transparent, Orange |
| Height (mm) | 10.1mm / 0.398 inch |
| Width (mm) | 16mm / 0.63 inch |
| Depth (Length) (mm) | 21.1mm / 0.831 inch |
| Weight (lbs) | 0.01 |
| UOM | ea |
