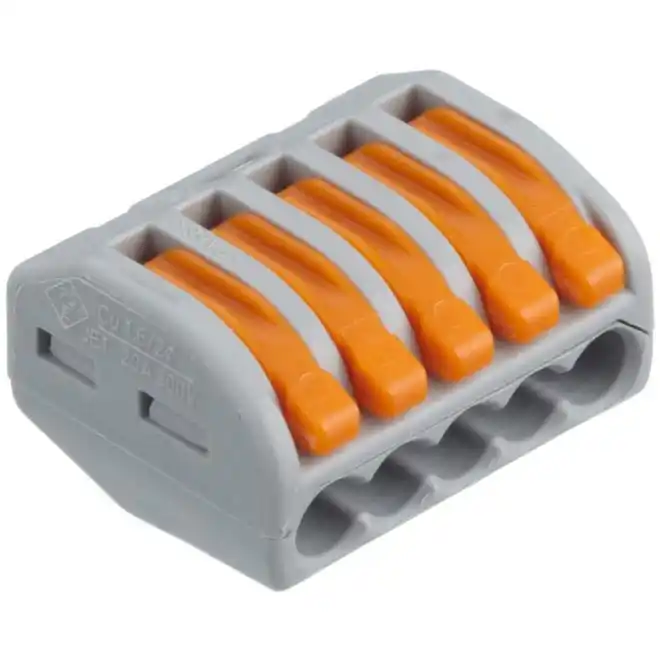

WAGO 222-415 Splicing Connectors with Levers Gray
SKU#:
314064
From intercom system wiring, to electrical ovens to hazardous locations: Connecting different conductor types is quick and easy with WAGO's compact 222 Series 222-415/K194-4045 Splicing Connector. Your benefits include: Connect all conductor types without preparing them, Combine any conductor types and sizes, Easy-to-use operating lever for tool-free terminations, Perfect for distribution applications thanks to mounting carrier. WAGO 222-415/K194-4045 is comparable to WAGO 222-415/VE00-0040.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 222-415/K194-4045 |
| Manufacturer Alternate Number | 51045379 |
| UPC | 4044918805728 |
| Electrical Connection | CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.08mm2 - 4mm2 / 28 - 12 AWG |
| Total Number of Connection Points | 5 |
| Total Number of Potentials | 1 |
| Strip Length | 9mm - 10mm / 0.35 - 0.39 inch |
| Type of Wiring | Side-Entry Wiring |
| Color | Gray, Orange |
| Height (mm) | 14.5mm / 0.571 inch |
| Width (mm) | 26.6mm / 1.047 inch |
| Depth (Length) (mm) | 20.5mm / 0.807 inch |
| Weight (lbs) | 0.01 |
| UOM | ea |
