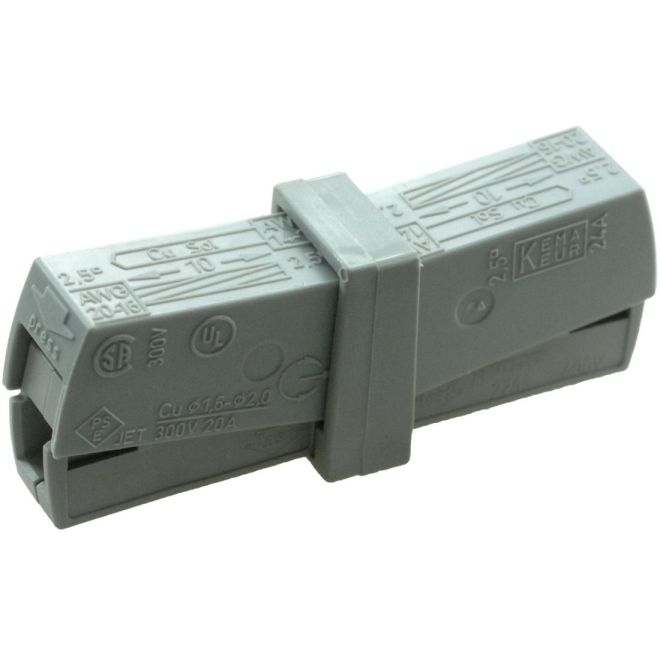

WAGO 224-201 Fixture Connectors 1-Pole Gray
SKU#:
125114
WAGO 224-201 spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO "Alu-Plus" Contact Paste is used for termination. For spring clamp connections with PUSH WIRE® connection technology, WAGO recommends that the aluminum conductor first be cleaned and then immediately inserted into the clamping unit filled with āAlu-Plusā contact paste. It is also possible to apply WAGO āAlu-Plusā additionally on the whole surface of the aluminum conductor before termination.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 224-201 |
| Manufacturer Alternate Number | 51147107 |
| UPC | 4044918818407 |
| Electrical Connection | CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.5mm2 - 2.5mm2 / 20 - 16 AWG |
| Total Number of Connection Points | 2 |
| Total Number of Potentials | 1 |
| Strip Length | 9mm - 10mm / 0.35 - 0.39 inch |
| Type of Wiring | Side-Entry Wiring |
| Color | Gray |
| Height (mm) | 15.5mm / 0.61 inch |
| Width (mm) | 8mm / 0.315 inch |
| Depth (Length) (mm) | 42mm / 1.654 inch |
| Weight (lbs) | 0.01 |
| UOM | ea |
