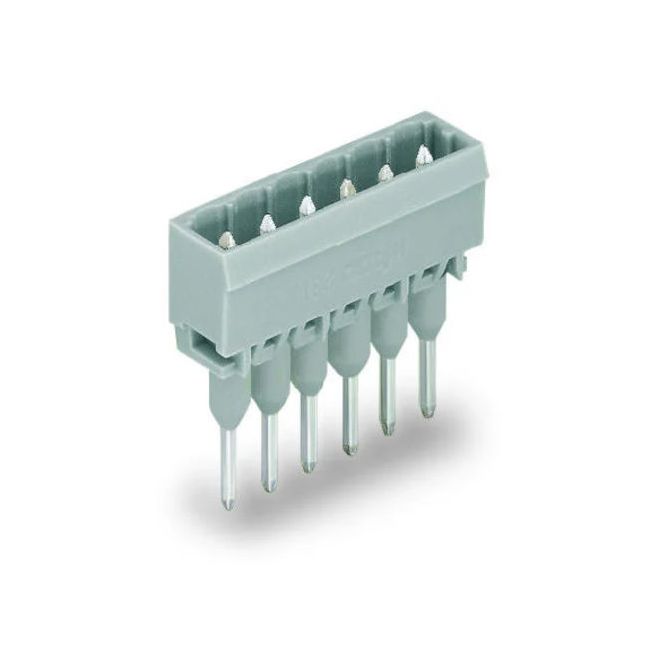

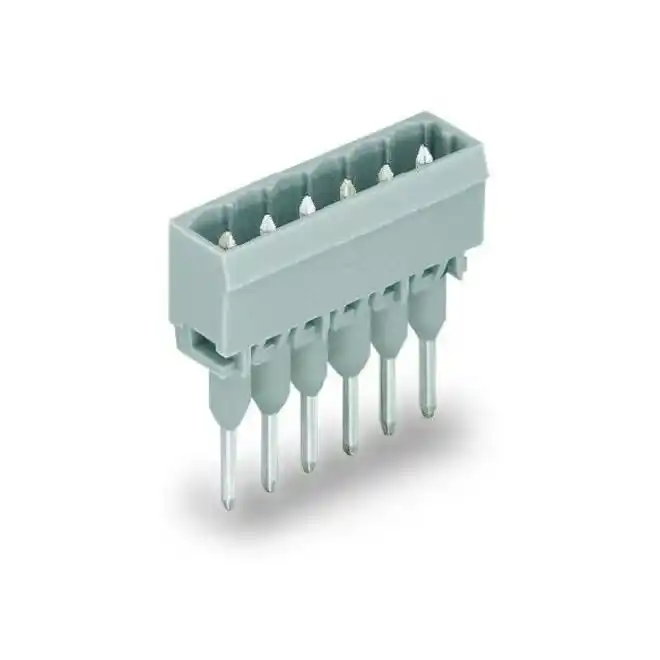

WAGO 231-162/003-000 MCS MIDI Male Connectors Gray
SKU#:
131856
WAGO MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, 231-162/003-000 connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 231-162/003-000 |
| Manufacturer Alternate Number | 51151004 |
| UPC | 4044918905138 |
| Electrical Connection | CAGE CLAMP® |
| Total Number of Potentials | 2 |
| Number of Levels | 1 |
| Pin Spacing | 5mm / 0.197 inch |
| Color | Gray |
| Number of Poles | 2 |
| Height (mm) | 25.9mm / 1.02 inch |
| Width (mm) | 13.2mm / 0.52 inch |
| Depth (Length) (mm) | 8.4mm / 0.331 inch |
| Weight (lbs) | 0.01 |
| UOM | ea |
