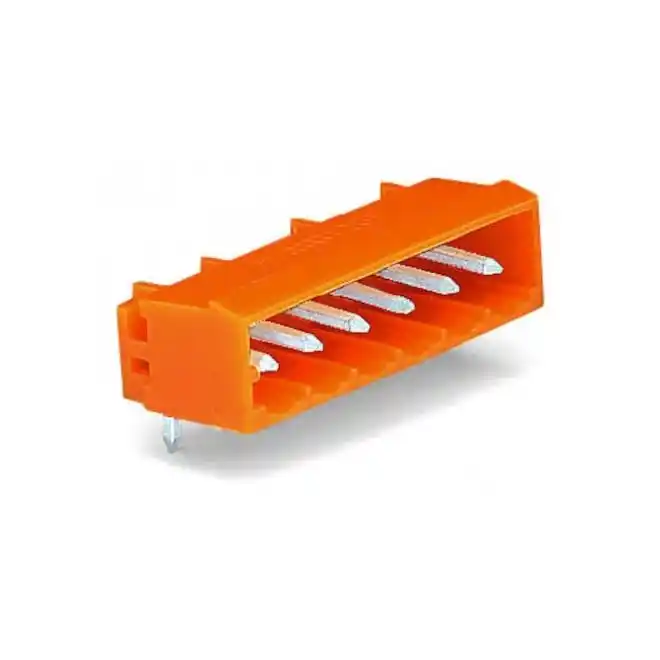

WAGO 231-566/001-000 MCS MIDI THT Male Headers
SKU#:
56763
WAGO MCS MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, 231-566/001-000 connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 231-566/001-000 |
| Manufacturer Alternate Number | 51152709 |
| UPC | 4044918931168 |
| Total Number of Potentials | 6 |
| Number of Levels | 1 |
| Pin Spacing | 5.08mm / 0.2 inch |
| Color | Orange |
| Number of Poles | 6 |
| Height (mm) | 12.2mm / 0.48 inch |
| Width (mm) | 33.6mm / 1.323 inch |
| Depth (Length) (mm) | 12mm / 0.472 inch |
| Weight (lbs) | 0.01 |
| UOM | ea |
