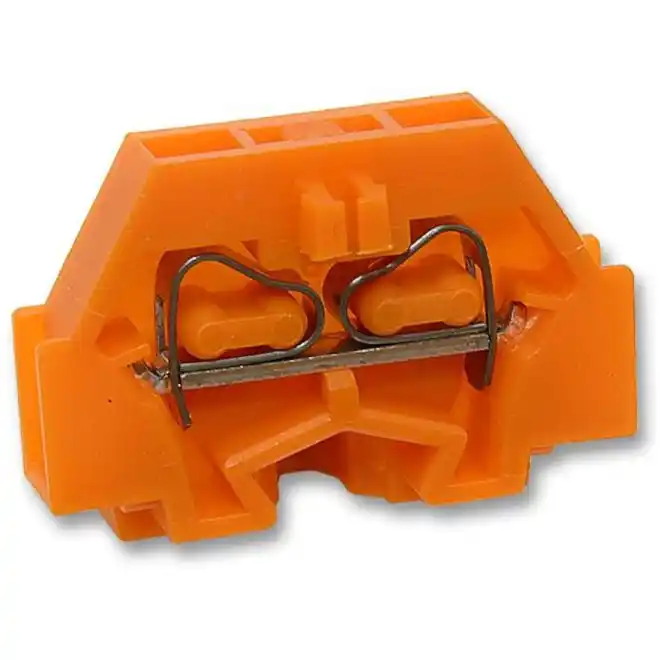

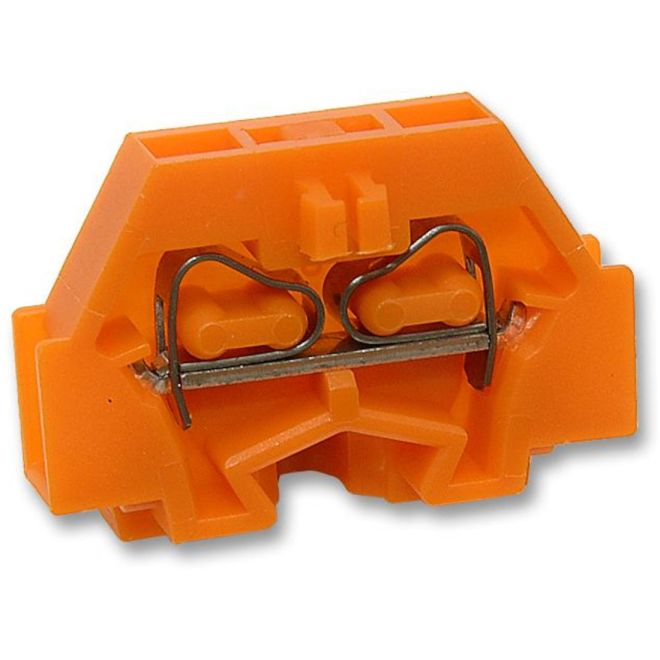

WAGO 260-306 Terminals without Push-Buttons Orange

SKU#:

58328

WAGO rail-mount terminal block program with proven CAGE CLAMP® Connection Technology has the right terminal block for any application: fuse, disconnect/test, diode and LED terminal blocks, pluggable terminal blocks - even rail-mount terminal blocks for wiring sensors and actuators. Advantages include: Multilevel terminal blocks: Double-deck or triple-deck terminal blocks save space, WAGO 260-306 CAGE CLAMP® connections: tried-and-tested billions of times, Multifaceted, individual commoning options via push-in type jumper bars, step-down jumpers, staggered jumpers, vertical jumpers, etc., Circuit identification via WMB markers, Easy testing via pluggable and modular test plug adapters, as well as test plugs.
Specifications
Brand WAGO
Manufacturer Part Number 260-306
Manufacturer Alternate Number 51136320
UPC 4044918593458
Electrical Connection CAGE CLAMP®
Fine-Stranded Conductor Wire Range 0.08mm2 - 1.5mm2 / 28 - 16 AWG
Total Number of Connection Points 2
Total Number of Potentials 1
Strip Length 8mm - 9mm / 0.31 - 0.35 inch
Number of Levels 1
Type of Wiring Side-Entry Wiring
Color Orange
Height (mm) 17mm / 0.669 inch
Width (mm) 5mm / 0.197 inch
Depth (Length) (mm) 25mm / 0.984 inch
Weight (lbs) 0.01
UOM ea
