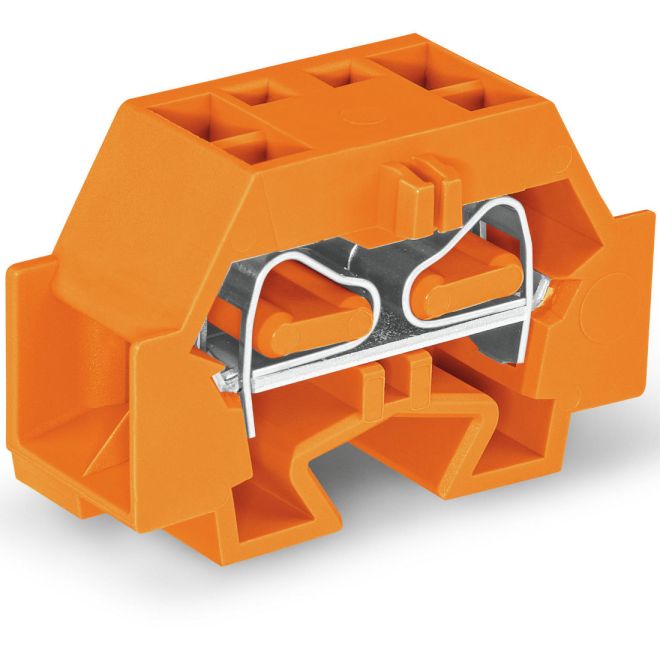

WAGO 262-336 Terminals without Push-Buttons Orange

SKU#:

58549

WAGO rail-mount terminal block program with proven CAGE CLAMP® Connection Technology has the right terminal block for any application: fuse, disconnect/test, diode and LED terminal blocks, pluggable terminal blocks - even rail-mount terminal blocks for wiring sensors and actuators. Advantages include: Multilevel terminal blocks: Double-deck or triple-deck terminal blocks save space, WAGO 262-336 CAGE CLAMP® connections: tried-and-tested billions of times, Multifaceted, individual commoning options via push-in type jumper bars, step-down jumpers, staggered jumpers, vertical jumpers, etc., Circuit identification via WMB markers, Easy testing via pluggable and modular test plug adapters, as well as test plugs.
Specifications
Brand WAGO
Manufacturer Part Number 262-336
Manufacturer Alternate Number 51139569
UPC 4044918638845
Electrical Connection CAGE CLAMP®
Fine-Stranded Conductor Wire Range 0.08mm2 - 4mm2 / 28 - 12 AWG
Total Number of Connection Points 4
Total Number of Potentials 1
Strip Length 9mm - 10mm / 0.35 - 0.39 inch
Number of Levels 1
Type of Wiring Side-Entry Wiring
Color Orange
Height (mm) 23mm / 0.906 inch
Width (mm) 12mm / 0.472 inch
Depth (Length) (mm) 33.5mm / 1.319 inch
Weight (lbs) 0.02
UOM ea
