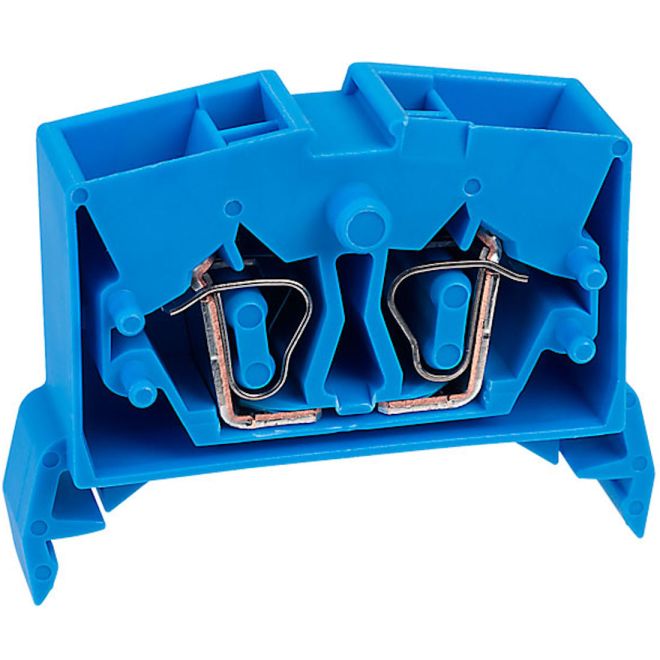

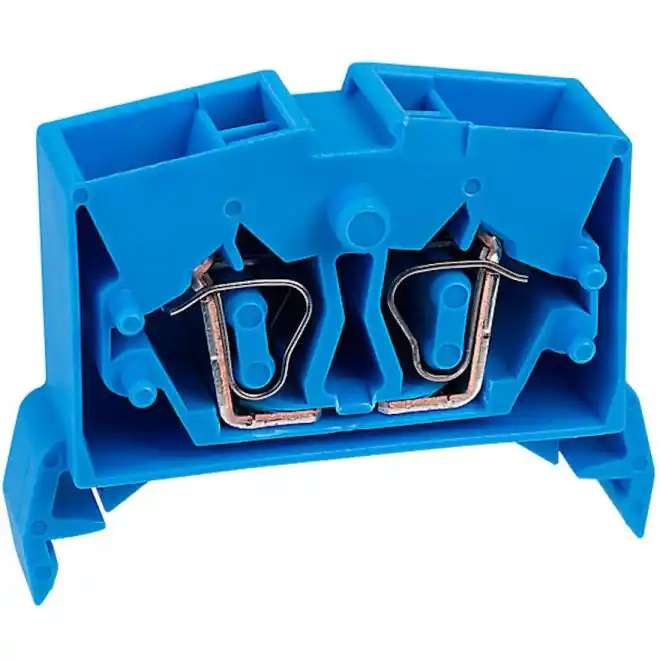

WAGO 264-714 Miniature Through Terminals Blue

SKU#:

58683

WAGO rail-mount terminal block program with proven CAGE CLAMP® Connection Technology has the right terminal block for any application: fuse, disconnect/test, diode and LED terminal blocks, pluggable terminal blocks - even rail-mount terminal blocks for wiring sensors and actuators. Advantages include: Multilevel terminal blocks: Double-deck or triple-deck terminal blocks save space, WAGO 264-714 CAGE CLAMP® connections: tried-and-tested billions of times, Multifaceted, individual commoning options via push-in type jumper bars, step-down jumpers, staggered jumpers, vertical jumpers, etc., Circuit identification via WMB markers, Easy testing via pluggable and modular test plug adapters, as well as test plugs.
Specifications
Brand WAGO
Manufacturer Part Number 264-714
Manufacturer Alternate Number 51123600
UPC 4044918415446
Electrical Connection CAGE CLAMP®
Fine-Stranded Conductor Wire Range 0.08mm2 - 2.5mm2 / 28 - 12 AWG
Total Number of Connection Points 2
Total Number of Potentials 1
Strip Length 8mm - 9mm / 0.31 - 0.35 inch
Number of Levels 1
Type of Wiring Front-Entry Wiring
Mounting Type DIN-35 Rail
Color Blue
Height (mm) 24.5mm / 0.965 inch
Width (mm) 6mm / 0.236 inch
Depth (Length) (mm) 38mm / 1.496 inch
Weight (lbs) 0.01
UOM ea
