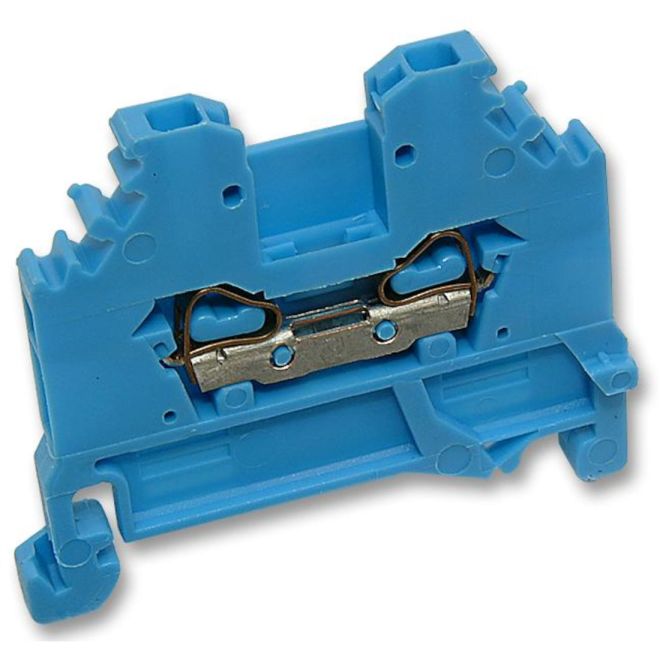

WAGO 279-104 Through Terminals 1.5mm2 Blue
SKU#:
28408
WAGO rail-mount terminal block program with proven CAGE CLAMP® Connection Technology has the right terminal block for any application: fuse, disconnect/test, diode and LED terminal blocks, pluggable terminal blocks - even rail-mount terminal blocks for wiring sensors and actuators. Advantages include: Multilevel terminal blocks: Double-deck or triple-deck terminal blocks save space, WAGO 279-104 CAGE CLAMP® connections: tried-and-tested billions of times, Multifaceted, individual commoning options via push-in type jumper bars, step-down jumpers, staggered jumpers, vertical jumpers, etc., Circuit identification via WMB markers, Easy testing via pluggable and modular test plug adapters, as well as test plugs.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 279-104 |
| Manufacturer Alternate Number | 51157371 |
| UPC | 4045454026455 |
| Electrical Connection | CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.08mm2 - 1.5mm2 / 28 - 16 AWG |
| Total Number of Connection Points | 2 |
| Total Number of Potentials | 1 |
| Strip Length | 8mm - 9mm / 0.31 - 0.35 inch |
| Number of Levels | 1 |
| Type of Wiring | Side-Entry Wiring |
| Mounting Type | DIN-35 Rail |
| Color | Blue |
| Height (mm) | 30.5mm / 1.201 inch |
| Width (mm) | 4mm / 0.157 inch |
| Depth (Length) (mm) | 42.5mm / 1.673 inch |
| Weight (lbs) | 0.01 |
| UOM | ea |
