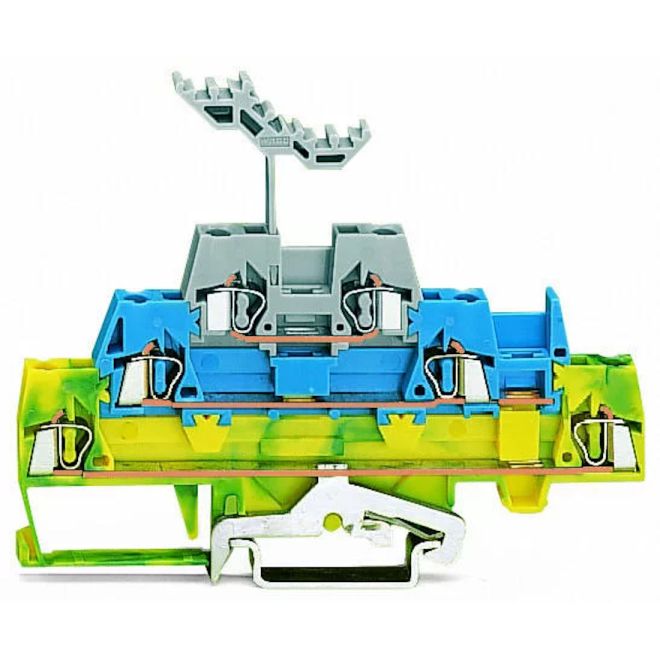

WAGO 280-547 Triple-Deck Terminals Ground
SKU#:
58886
WAGO 280-547 spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO "Alu-Plus" Contact Paste is used for termination. Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately be inserted into the clamping units filled with "Alu-Plus" Contact Paste. It is also possible to apply WAGO "Alu-Plus" additionally on the whole surface of the aluminum conductor before termination. Using staggered jumpers reduces the maximum rated voltage to 275 V.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 280-547 |
| Manufacturer Alternate Number | 51245291 |
| UPC | 4050821293712 |
| Electrical Connection | CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.08mm2 - 2.5mm2 / 28 - 12 AWG |
| Total Number of Connection Points | 6 |
| Total Number of Potentials | 3 |
| Strip Length | 8mm - 9mm / 0.31 - 0.35 inch |
| Number of Levels | 3 |
| Type of Wiring | Front-Entry Wiring |
| Mounting Type | DIN-35 Rail |
| Color | Green-Yellow, Blue, Gray |
| Height (mm) | 49.5mm / 1.949 inch |
| Width (mm) | 5mm / 0.197 inch |
| Depth (Length) (mm) | 103 mm / 4.055 inch |
| Weight (lbs) | 0.05 |
| UOM | ea |
