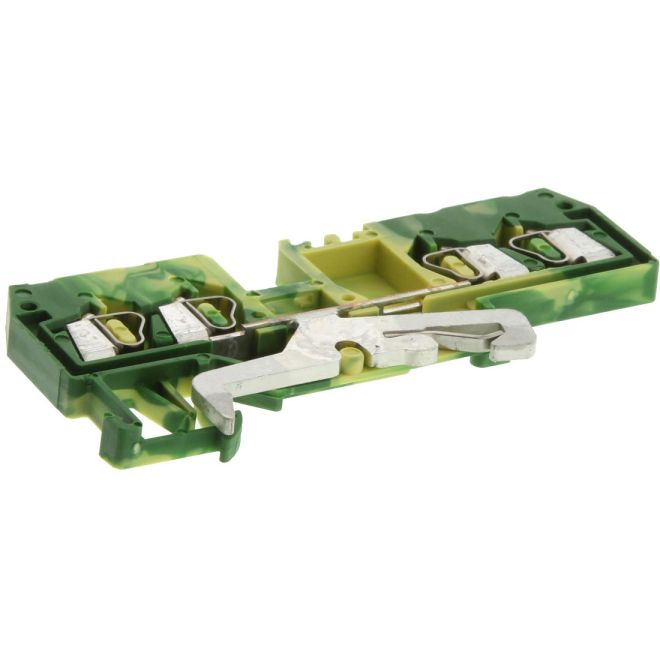

WAGO 280-677 4-Conductor Ground Terminals

SKU#:

35597

WAGO rail-mount terminal block program with proven CAGE CLAMP® Connection Technology has the right terminal block for any application: fuse, disconnect/test, diode and LED terminal blocks, pluggable terminal blocks - even rail-mount terminal blocks for wiring sensors and actuators. Advantages include: Multilevel terminal blocks: Double-deck or triple-deck terminal blocks save space, WAGO 280-677 CAGE CLAMP® connections: tried-and-tested billions of times, Multifaceted, individual commoning options via push-in type jumper bars, step-down jumpers, staggered jumpers, vertical jumpers, etc., Circuit identification via WMB markers, Easy testing via pluggable and modular test plug adapters, as well as test plugs. WAGO 280-681 is comparable to Automation Direct DN-Q12-1-2-A, Phoenix Contact 3031241, Weidmuller 1608540000, Allen Bradley 1492-L3T 1492-R3T, Wieland 56.703.5055.0, ABB 1SNK705011R0000.
Specifications
Brand WAGO
Manufacturer Part Number 280-677
Manufacturer Alternate Number 51162260
UPC 4045454100124
Electrical Connection CAGE CLAMP®
Fine-Stranded Conductor Wire Range 0.08mm2 - 2.5mm2 / 28 - 12 AWG
Total Number of Connection Points 4
Total Number of Potentials 1
Strip Length 8mm - 9mm / 0.31 - 0.35 inch
Number of Levels 1
Type of Wiring Front-Entry Wiring
Mounting Type DIN-35 Rail
Color Green-Yellow
Height (mm) 28mm / 1.102 inch
Width (mm) 5mm / 0.197 inch
Depth (Length) (mm) 75mm / 2.953 inch
Weight (lbs) 0.03
UOM ea
