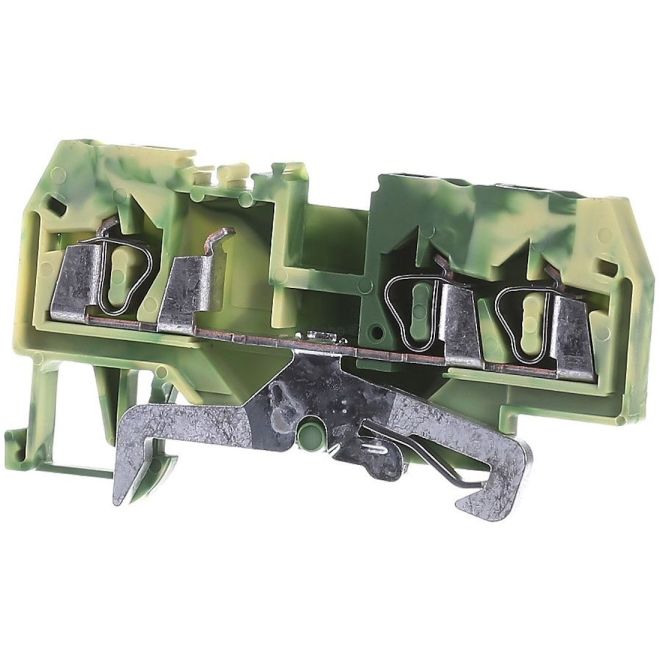

WAGO 280-687 3-Conductor Ground Terminals

SKU#:

28444

WAGO rail-mount terminal block program with proven CAGE CLAMP® Connection Technology has the right terminal block for any application: fuse, disconnect/test, diode and LED terminal blocks, pluggable terminal blocks - even rail-mount terminal blocks for wiring sensors and actuators. Advantages include: Multilevel terminal blocks: Double-deck or triple-deck terminal blocks save space, WAGO 280-687 CAGE CLAMP® connections: tried-and-tested billions of times, Multifaceted, individual commoning options via push-in type jumper bars, step-down jumpers, staggered jumpers, vertical jumpers, etc., Circuit identification via WMB markers, Easy testing via pluggable and modular test plug adapters, as well as test plugs.
Specifications
Brand WAGO
Manufacturer Part Number 280-687
Manufacturer Alternate Number 51162262
UPC 4045454100148
Electrical Connection CAGE CLAMP®
Fine-Stranded Conductor Wire Range 0.08mm2 - 2.5mm2 / 28 - 12 AWG
Total Number of Connection Points 3
Total Number of Potentials 1
Strip Length 8mm - 9mm / 0.31 - 0.35 inch
Number of Levels 1
Type of Wiring Front-Entry Wiring
Mounting Type DIN-35 Rail
Color Green-Yellow
Height (mm) 28mm / 1.102 inch
Width (mm) 5mm / 0.197 inch
Depth (Length) (mm) 64mm / 2.52 inch
Weight (lbs) 0.02
UOM ea
