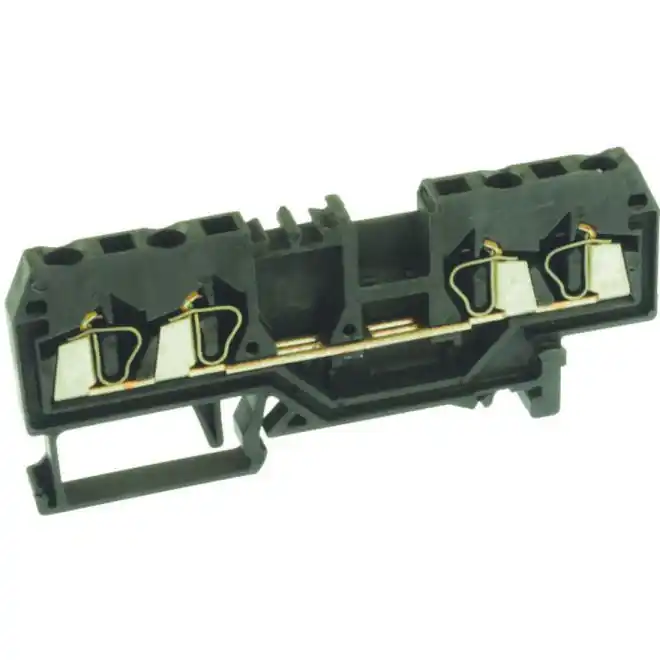

WAGO 280-831 4-Conductor Through Terminals Black
SKU#:
59027
WAGO 280-831 spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO "Alu-Plus" Contact Paste is used for termination. Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately be inserted into the clamping units filled with "Alu-Plus" Contact Paste. It is also possible to apply WAGO "Alu-Plus" additionally on the whole surface of the aluminum conductor before termination. Using staggered jumpers reduces the maximum rated voltage to 275 V. WAGO 280-833 is comparable to Automation Direct DN-Q12-2-2-A, Phoenix Contact 3031306, Weidmuller 1608570000, Allen Bradley 1492-L3Q 1492-R3Q, Wieland 56.703.5155.0, ABB 1SNK705012R0000.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 280-831 |
| Manufacturer Alternate Number | 51114489 |
| UPC | 4044918311229 |
| Electrical Connection | CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.08mm2 - 2.5mm2 / 28 - 12 AWG |
| Total Number of Connection Points | 4 |
| Total Number of Potentials | 1 |
| Strip Length | 8mm - 9mm / 0.31 - 0.35 inch |
| Number of Levels | 1 |
| Type of Wiring | Front-Entry Wiring |
| Mounting Type | DIN-35 Rail |
| Color | Black |
| Height (mm) | 75mm / 2.953 inch |
| Width (mm) | 5mm / 0.197 inch |
| Depth (Length) (mm) | 28mm / 1.102 inch |
| Weight (lbs) | 0.02 |
| UOM | ea |
