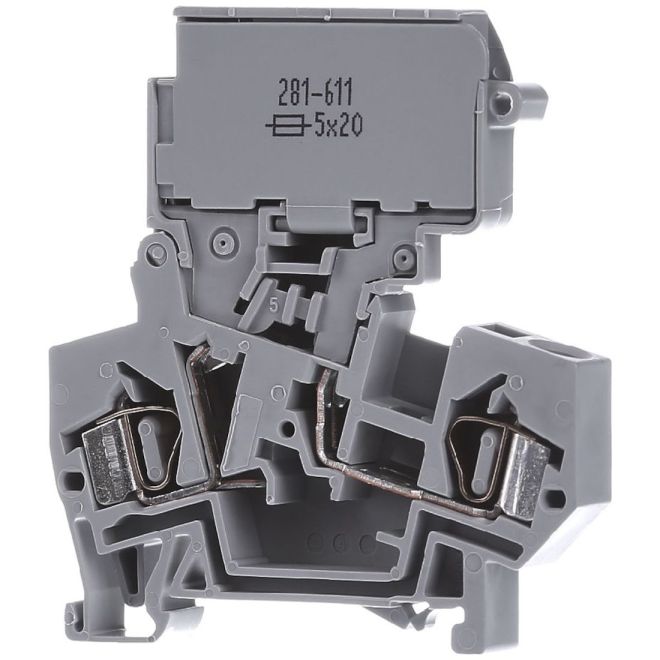

WAGO 281-611 2-Conductor Fuse Terminal Blocks Gray

SKU#:

35609

WAGO rail-mount terminal block program with proven CAGE CLAMP® Connection Technology has the right terminal block for any application: fuse, disconnect/test, diode and LED terminal blocks, pluggable terminal blocks - even rail-mount terminal blocks for wiring sensors and actuators. Advantages include: Multilevel terminal blocks: Double-deck or triple-deck terminal blocks save space, WAGO 281-611 CAGE CLAMP® connections: tried-and-tested billions of times, Multifaceted, individual commoning options via push-in type jumper bars, step-down jumpers, staggered jumpers, vertical jumpers, etc., Circuit identification via WMB markers, Easy testing via pluggable and modular test plug adapters, as well as test plugs. WAGO 281-611 is comparable to Schneider Electric AB1FUSE435U5X.
Specifications
Brand WAGO
Manufacturer Part Number 281-611
Manufacturer Alternate Number 51194914
UPC 4045454614591
Electrical Connection CAGE CLAMP®
Fine-Stranded Conductor Wire Range 0.08mm2 - 4mm2 / 28 - 12 AWG
Total Number of Connection Points 2
Total Number of Potentials 2
Strip Length 9mm - 10mm / 0.35 - 0.39 inch
Number of Levels 1
Type of Wiring Front-Entry Wiring
Mounting Type DIN-35 Rail
Color Gray
Height (mm) 60mm / 2.362 inch
Width (mm) 8mm / 0.315 inch
Depth (Length) (mm) 60mm / 2.362 inch
Weight (lbs) 0.04
UOM ea
