WAGO 281-637 3-Conductor Ground Terminals

SKU#:

28461

WAGO rail-mount terminal block program with proven CAGE CLAMP® Connection Technology has the right terminal block for any application: fuse, disconnect/test, diode and LED terminal blocks, pluggable terminal blocks - even rail-mount terminal blocks for wiring sensors and actuators. Advantages include: Multilevel terminal blocks: Double-deck or triple-deck terminal blocks save space, WAGO 281-637 CAGE CLAMP® connections: tried-and-tested billions of times, Multifaceted, individual commoning options via push-in type jumper bars, step-down jumpers, staggered jumpers, vertical jumpers, etc., Circuit identification via WMB markers, Easy testing via pluggable and modular test plug adapters, as well as test plugs.
Specifications
Brand WAGO
Manufacturer Part Number 281-637
Manufacturer Alternate Number 51160750
UPC 4045454084516
Electrical Connection CAGE CLAMP®
Fine-Stranded Conductor Wire Range 0.08mm2 - 4mm2 / 28 - 12 AWG
Total Number of Connection Points 3
Total Number of Potentials 1
Strip Length 9mm - 10mm / 0.35 - 0.39 inch
Number of Levels 1
Type of Wiring Front-Entry Wiring
Mounting Type DIN-35 Rail
Color Green-Yellow

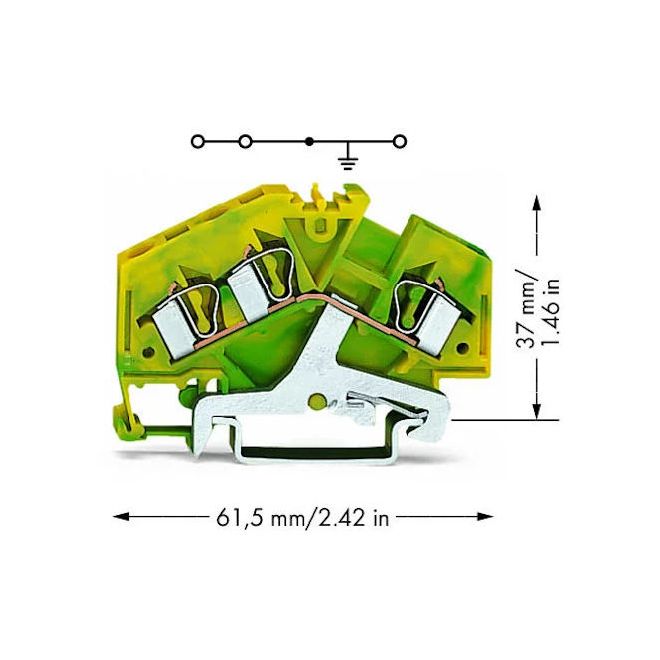

Height (mm) 37mm / 1.457 inch
Width (mm) 6mm / 0.236 inch
Depth (Length) (mm) 61.5mm / 2.421 inch
Weight (lbs) 0.04
UOM ea
