WAGO 281-907 Ground Terminals 4mm2 Green-Yellow
SKU#:
35618
WAGO rail-mount terminal block program with proven CAGE CLAMP® Connection Technology has the right terminal block for any application: fuse, disconnect/test, diode and LED terminal blocks, pluggable terminal blocks - even rail-mount terminal blocks for wiring sensors and actuators. Advantages include: Multilevel terminal blocks: Double-deck or triple-deck terminal blocks save space, WAGO 281-907 CAGE CLAMP® connections: tried-and-tested billions of times, Multifaceted, individual commoning options via push-in type jumper bars, step-down jumpers, staggered jumpers, vertical jumpers, etc., Circuit identification via WMB markers, Easy testing via pluggable and modular test plug adapters, as well as test plugs. WAGO 281-907 is comparable to Automation Direct DN-QG12, Weidmuller 1608640000, Phoenix Contact 3031238, Allen Bradley 1492-RG3.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 281-907 |
| Manufacturer Alternate Number | 51131673 |
| UPC | 4044918512046 |
| Electrical Connection | CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.08mm2 - 4mm2 / 28 - 12 AWG |
| Total Number of Connection Points | 2 |
| Total Number of Potentials | 1 |
| Strip Length | 9mm - 10mm / 0.35 - 0.39 inch |
| Number of Levels | 1 |
| Type of Wiring | Front-Entry Wiring |
| Mounting Type | DIN-35 Rail |
| Color | Green-Yellow |

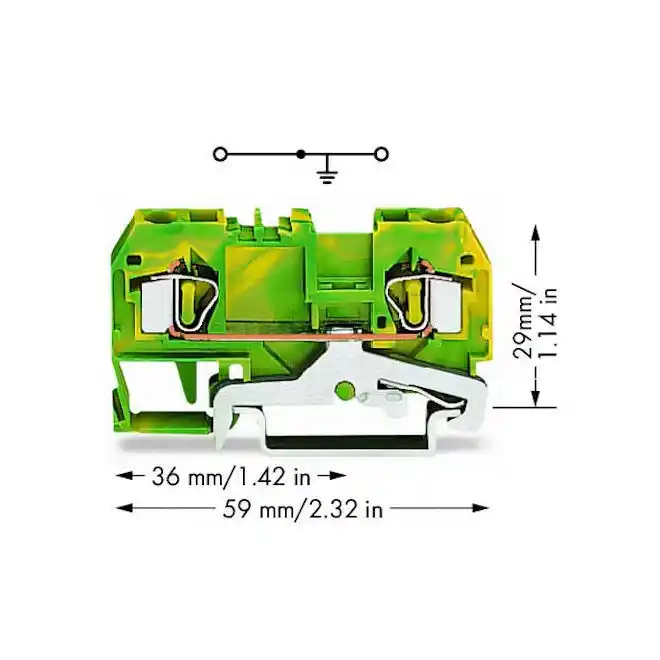

| Height (mm) | 29mm / 1.142 inch |
| Width (mm) | 6mm / 0.236 inch |
| Depth (Length) (mm) | 59mm / 2.323 inch |
| Weight (lbs) | 0.03 |
| UOM | ea |
