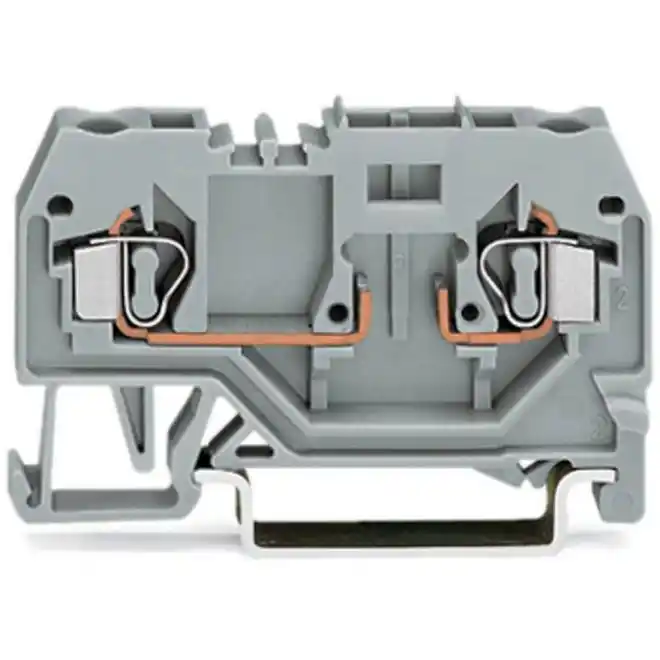

WAGO 281-916 Carrier Terminals Gray

SKU#:

59230

WAGO rail-mount terminal block program with proven CAGE CLAMP® Connection Technology has the right terminal block for any application: fuse, disconnect/test, diode and LED terminal blocks, pluggable terminal blocks - even rail-mount terminal blocks for wiring sensors and actuators. Advantages include: Multilevel terminal blocks: Double-deck or triple-deck terminal blocks save space, WAGO 281-916 CAGE CLAMP® connections: tried-and-tested billions of times, Multifaceted, individual commoning options via push-in type jumper bars, step-down jumpers, staggered jumpers, vertical jumpers, etc., Circuit identification via WMB markers, Easy testing via pluggable and modular test plug adapters, as well as test plugs.
Specifications
Brand WAGO
Manufacturer Part Number 281-916
Manufacturer Alternate Number 51239102
UPC 4050821214922
Electrical Connection CAGE CLAMP®
Fine-Stranded Conductor Wire Range 0.08mm2 - 4mm2 / 28 - 12 AWG
Total Number of Connection Points 2
Total Number of Potentials 2
Strip Length 9mm - 10mm / 0.35 - 0.39 inch
Number of Levels 1
Type of Wiring Front-Entry Wiring
Mounting Type DIN-35 Rail
Color Gray
Height (mm) 29mm / 1.142 inch
Width (mm) 6mm / 0.236 inch
Depth (Length) (mm) 59mm / 2.323 inch
Weight (lbs) 0.02
UOM ea
