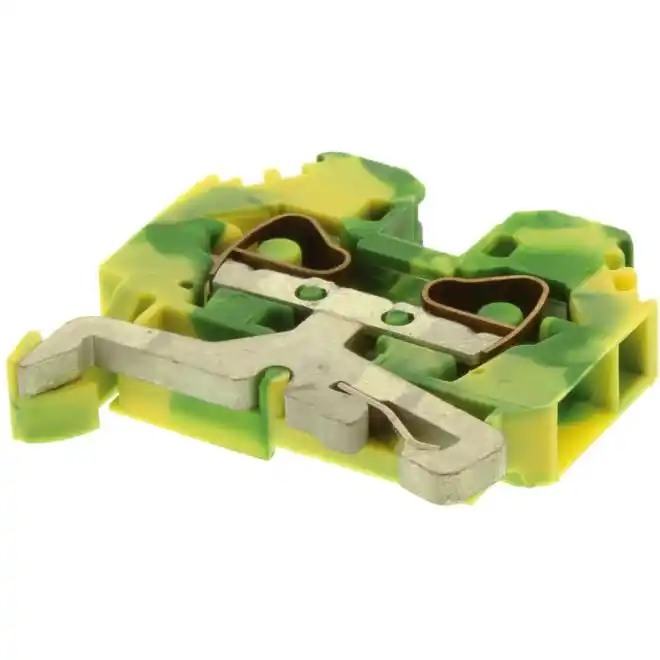

WAGO 282-107 Ground Terminals Green-Yellow

SKU#:

59232

WAGO rail-mount terminal block program with proven CAGE CLAMP® Connection Technology has the right terminal block for any application: fuse, disconnect/test, diode and LED terminal blocks, pluggable terminal blocks - even rail-mount terminal blocks for wiring sensors and actuators. Advantages include: Multilevel terminal blocks: Double-deck or triple-deck terminal blocks save space, WAGO 282-107 CAGE CLAMP® connections: tried-and-tested billions of times, Multifaceted, individual commoning options via push-in type jumper bars, step-down jumpers, staggered jumpers, vertical jumpers, etc., Circuit identification via WMB markers, Easy testing via pluggable and modular test plug adapters, as well as test plugs.
Specifications
Brand WAGO
Manufacturer Part Number 282-107
Manufacturer Alternate Number 51160751
UPC 4045454084523
Electrical Connection CAGE CLAMP®
Fine-Stranded Conductor Wire Range 0.2mm2 - 6mm2 / 24 - 10 AWG
Total Number of Connection Points 2
Total Number of Potentials 1
Strip Length 12mm - 13mm / 0.47 - 0.51 inch
Number of Levels 1
Type of Wiring Side-Entry Wiring
Mounting Type DIN-35 Rail
Color Green-Yellow
Height (mm) 37mm / 1.457 inch
Width (mm) 8mm / 0.315 inch
Depth (Length) (mm) 46.5mm / 1.831 inch
Weight (lbs) 0.04
UOM ea
