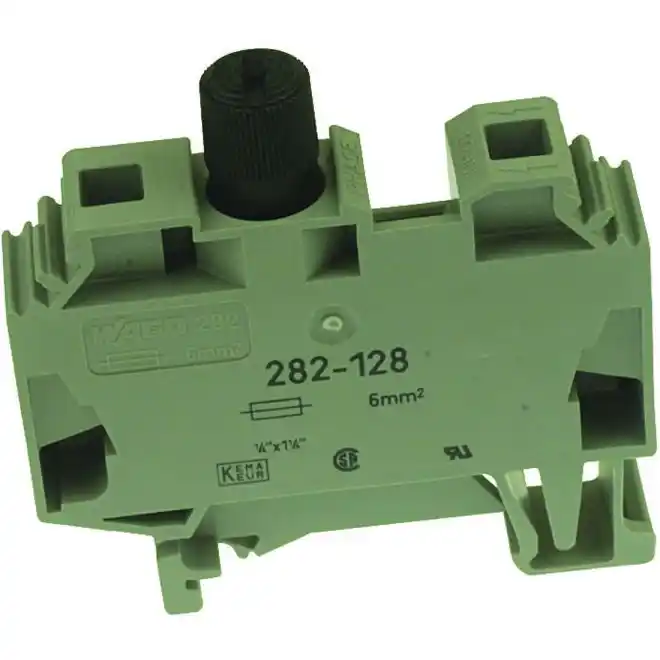

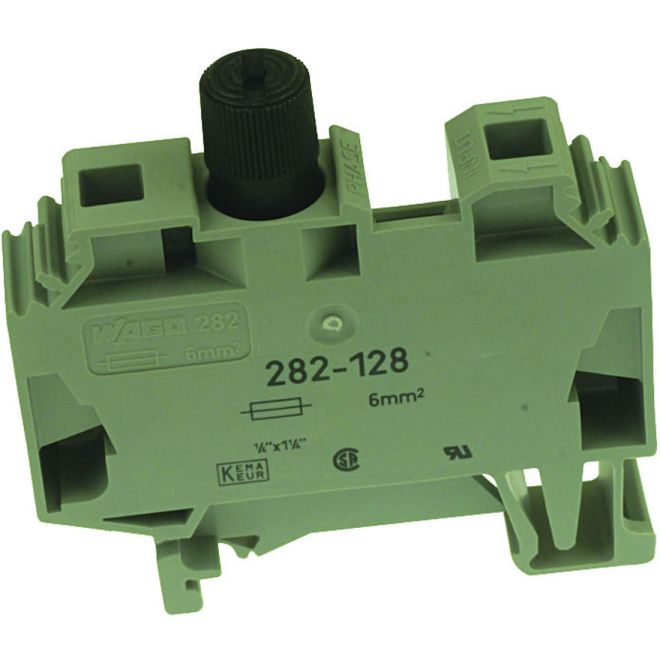

WAGO 282-128 Fuse Terminals Glass Cartridge Fuse

SKU#:

35620

WAGO rail-mount terminal block program with proven CAGE CLAMP® Connection Technology has the right terminal block for any application: fuse, disconnect/test, diode and LED terminal blocks, pluggable terminal blocks - even rail-mount terminal blocks for wiring sensors and actuators. Advantages include: Multilevel terminal blocks: Double-deck or triple-deck terminal blocks save space, WAGO 282-128 CAGE CLAMP® connections: tried-and-tested billions of times, Multifaceted, individual commoning options via push-in type jumper bars, step-down jumpers, staggered jumpers, vertical jumpers, etc., Circuit identification via WMB markers, Easy testing via pluggable and modular test plug adapters, as well as test plugs.
Specifications
Brand WAGO
Manufacturer Part Number 282-128
Manufacturer Alternate Number 51134002
UPC 4044918558563
Electrical Connection CAGE CLAMP®
Fine-Stranded Conductor Wire Range 0.2mm2 - 6mm2 / 24 - 10 AWG
Total Number of Connection Points 2
Total Number of Potentials 2
Strip Length 12mm - 13mm / 0.47 - 0.51 inch
Number of Levels 1
Type of Wiring Side-Entry Wiring
Mounting Type DIN-35 Rail
Color Gray
Height (mm) 56.5mm / 2.224 inch
Width (mm) 13mm / 0.512 inch
Depth (Length) (mm) 62mm / 2.441 inch
Weight (lbs) 0.06
UOM ea
