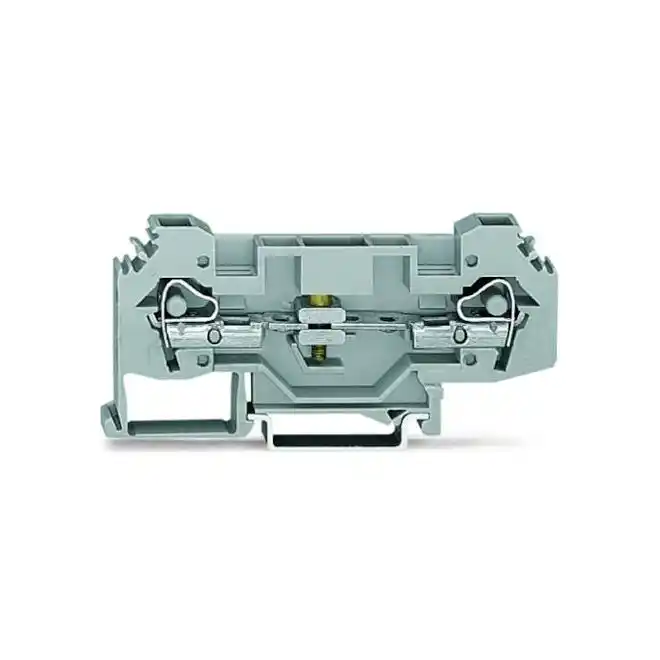

WAGO 282-135 Disconnect/Test Terminals Gray
SKU#:
59240
WAGO rail-mount terminal block program with proven 282-135 CAGE CLAMP® Connection Technology has the right terminal block product for any application: fuse, disconnect/test, diode and LED terminal blocks, pluggable terminal blocks - even rail-mount terminal blocks for wiring sensors and actuators.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 282-135 |
| Manufacturer Alternate Number | 51253848 |
| UPC | 4050821397113 |
| Electrical Connection | CAGE CLAMP® |
| Fine-Stranded Conductor Wire Range | 0.2mm2 - 6mm2 / 24 - 10 AWG |
| Total Number of Connection Points | 2 |
| Total Number of Potentials | 1 |
| Strip Length | 12mm - 13mm / 0.47 - 0.51 inch |
| Number of Levels | 1 |
| Type of Wiring | Side-Entry Wiring |
| Mounting Type | DIN-35 Rail |
| Color | Gray |
| Height (mm) | 37mm / 1.457 inch |
| Width (mm) | 8mm / 0.315 inch |
| Depth (Length) (mm) | 87.5mm / 3.445 inch |
| Weight (lbs) | 0.05 |
| UOM | ea |
