WAGO 282-681 3-Conductor Through Terminals Gray

SKU#:

59281

WAGO rail-mount terminal block program with proven CAGE CLAMP® Connection Technology has the right terminal block for any application: fuse, disconnect/test, diode and LED terminal blocks, pluggable terminal blocks - even rail-mount terminal blocks for wiring sensors and actuators. Advantages include: Multilevel terminal blocks: Double-deck or triple-deck terminal blocks save space, WAGO 282-681 CAGE CLAMP® connections: tried-and-tested billions of times, Multifaceted, individual commoning options via push-in type jumper bars, step-down jumpers, staggered jumpers, vertical jumpers, etc., Circuit identification via WMB markers, Easy testing via pluggable and modular test plug adapters, as well as test plugs. WAGO 282-681 is comparable to Phoenix Contact 3031393, Weidmuller 1770360000, Allen Bradley 1492-L4T, Wieland 56.704.5055.0, ABB 1SNK706011R0000.
Specifications
Brand WAGO
Manufacturer Part Number 282-681
Manufacturer Alternate Number 51120874
UPC 4044918386098
Electrical Connection CAGE CLAMP®
Fine-Stranded Conductor Wire Range 0.2mm2 - 6mm2 / 24 - 10 AWG
Total Number of Connection Points 3
Total Number of Potentials 1
Strip Length 12mm - 13mm / 0.47 - 0.51 inch
Number of Levels 1
Type of Wiring Front-Entry Wiring
Mounting Type DIN-35 Rail
Color Gray

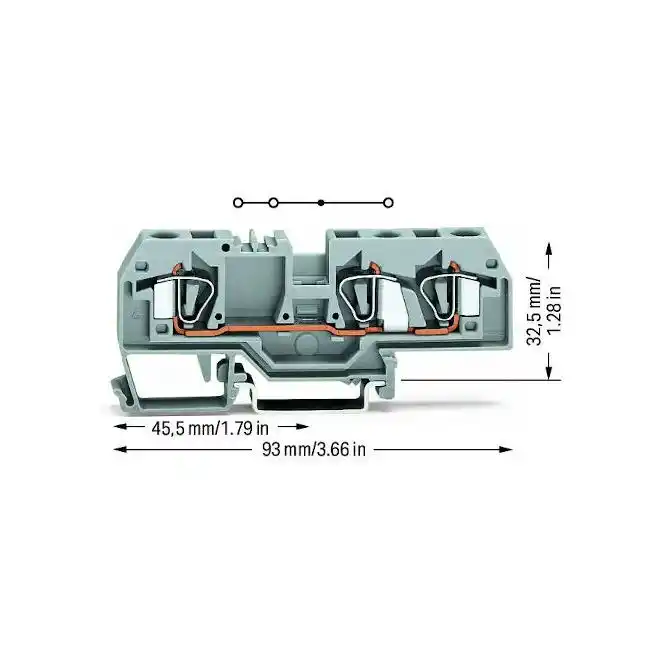

Height (mm) 32.5mm / 1.28 inch
Width (mm) 8mm / 0.315 inch
Depth (Length) (mm) 93mm / 3.661 inch
Weight (lbs) 0.05
UOM ea
