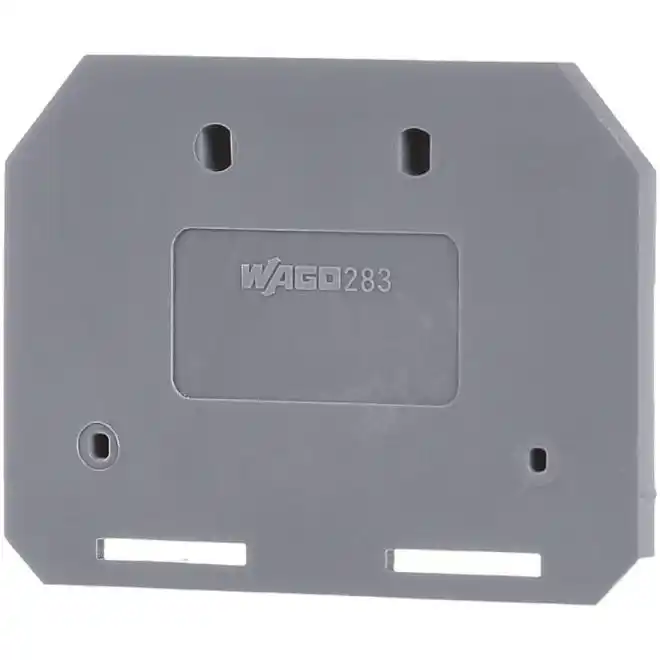

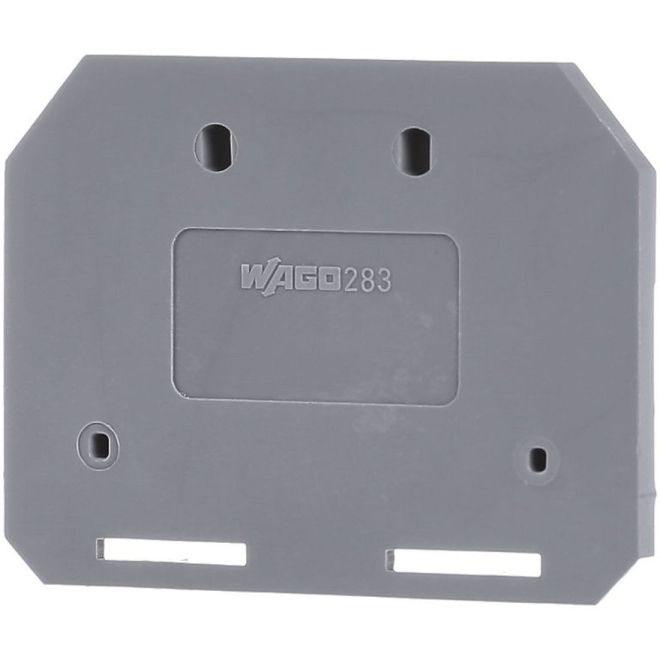

WAGO 283-301 End / Intermediate Plates 4mm Gray
SKU#:
28488
WAGO 283-301 spring clamp terminal blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO "Alu-Plus" Contact Paste is used for termination. Using terminal blocks with CAGE CLAMP® Spring Pressure Connection Technology, aluminum conductors must first be cleaned with a blade and then immediately be inserted into the clamping units filled with "Alu-Plus" Contact Paste. It is also possible to apply WAGO "Alu-Plus" additionally on the whole surface of the aluminum conductor before termination. Using staggered jumpers reduces the maximum rated voltage to 275 V.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 283-301 |
| Manufacturer Alternate Number | 2830301 |
| UPC | 4017332286374 |
| Color | Gray |
| Height (mm) | 44mm / 1.732 inch |
| Width (mm) | 4mm / 0.157 inch |
| Depth (Length) (mm) | 58mm / 2.283 inch |
| Weight (lbs) | 0.01 |
| UOM | ea |
