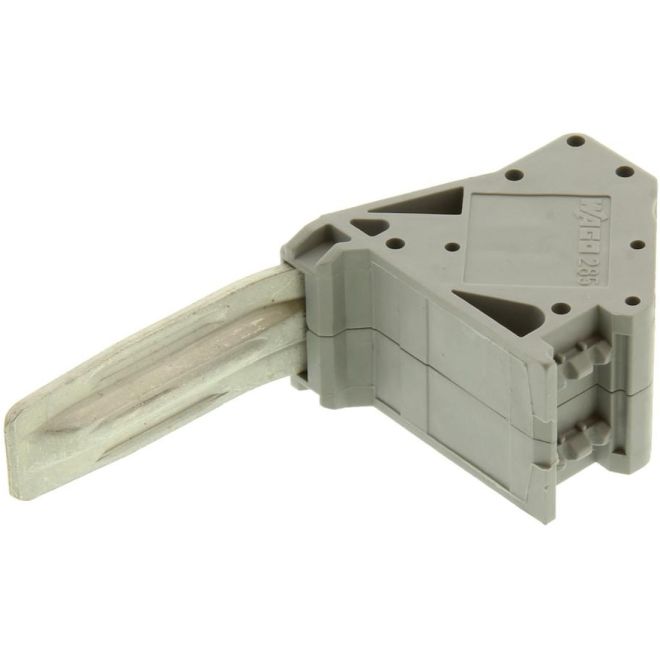

WAGO 285-407 POWER CAGE CLAMP Power Tap Gray

WAGO 285-407 high-current, rail-mount terminal blocks with POWER CAGE CLAMP apply spring pressure to connect conductors up to 185 mm2 (350 kcmil). They are available as 35, 50, 95 and 185 mm2 (2, 1/0, 4/0 AWG; 350 kcmil terminal blocks. Versions are available for both DIN-rail mounting and direct mounting onto the plate via mounting flanges. Advantages include: For all applications: energy-intensive industries including machinery and equipment manufacturing, as well as energy production, Also suitable for harsh conditions: heat- and cold-resistant, Ex e II approvals (185 mm2/350 kcmil pending), Easy to use: side-entry conductor insertion and locking tab for easy wiring, Fast termination: no time-consuming preparation - no ring terminals or ferrules required.
